Brand: haocheng
Features:
- 1L/2LRotary Evaporator ,Standard :1L /2LRotary Flask
- 110V/60Hz 220V/50Hz
- Automatic control
- One year warranty
- Free shipping Delivery period 5-12 working days
Shenzhen Haocheng Instrument Co.,Ltd
Details:
Introduction

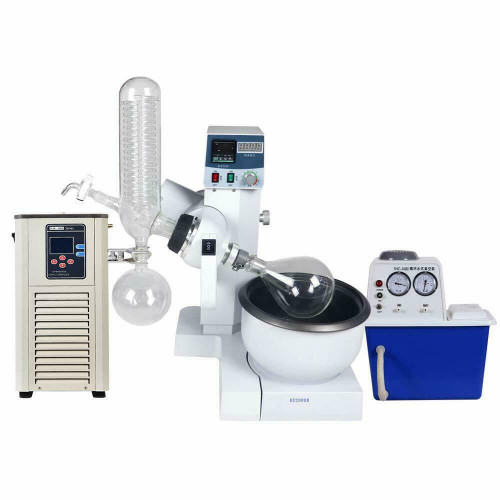

The equipment for purification distillation test rotates and shapes a thin film in negative pressure condition by heating, evaporates efficiently, and then condenses and recollects solvent to purify and separate.
The rotary evaporator can be made into system devices with Circulating Water Vacuum Pump , Vacuum Pump , Low Temperature Circulating Pump, Circulating Cooler, Constant Temperature Reaction Bath , Low Temperature Cooling Liquid Circulating Pump.
Specification
Rotary Evaporator:
Collect Flask: 2L
Rotary Flask: 2L
Motor Power:40W
Power Voltage: 220/110V for Optional
Bath Power: 1500 W
Bath Volume: 2L
Evaporation Rate(Water): 1L/ H
Speed Range: 0 - 200 RPM
Lift and Stroke: Automatic Control, 150mm
Heating Temperature Range: Rm-99 Degree
Heat Control: PID
Heat control accuracy: ±1 Degree
Ultimate Vacuum: 0.098 Mpa
Vacuum Pump:
Flow: 60L /min
Maximum vacuum: 0.098 Mpa
Single-head exhaust volume: 10L
Power : 180W
Tank Volume: 15L
Package Content
1 x Rotary Evaporator ---Carton Box
1 x Vacuum Pump-Carton Box
