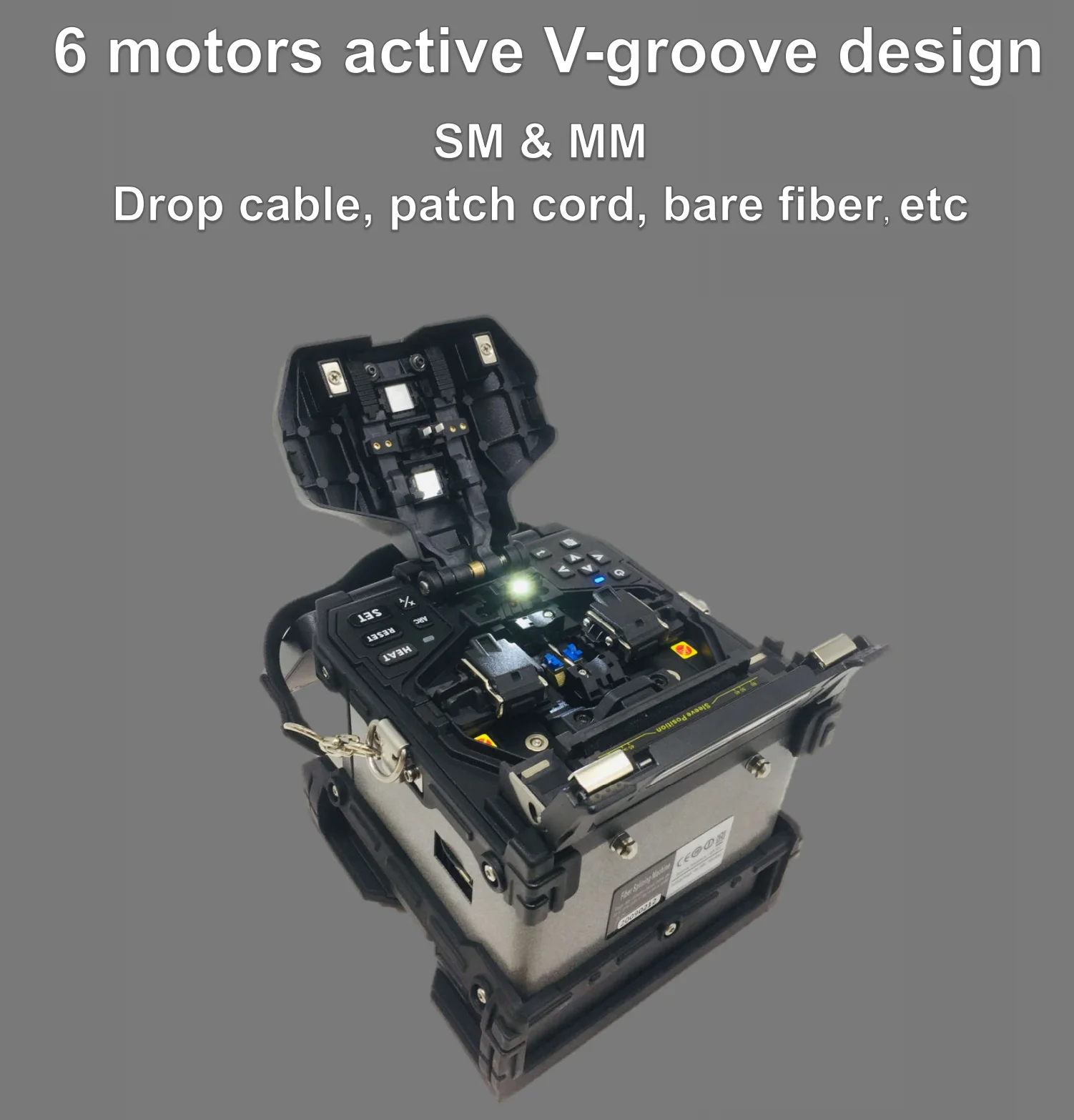

Product Description

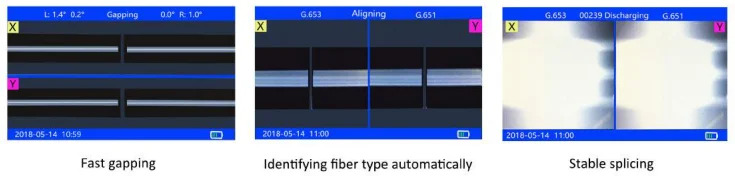

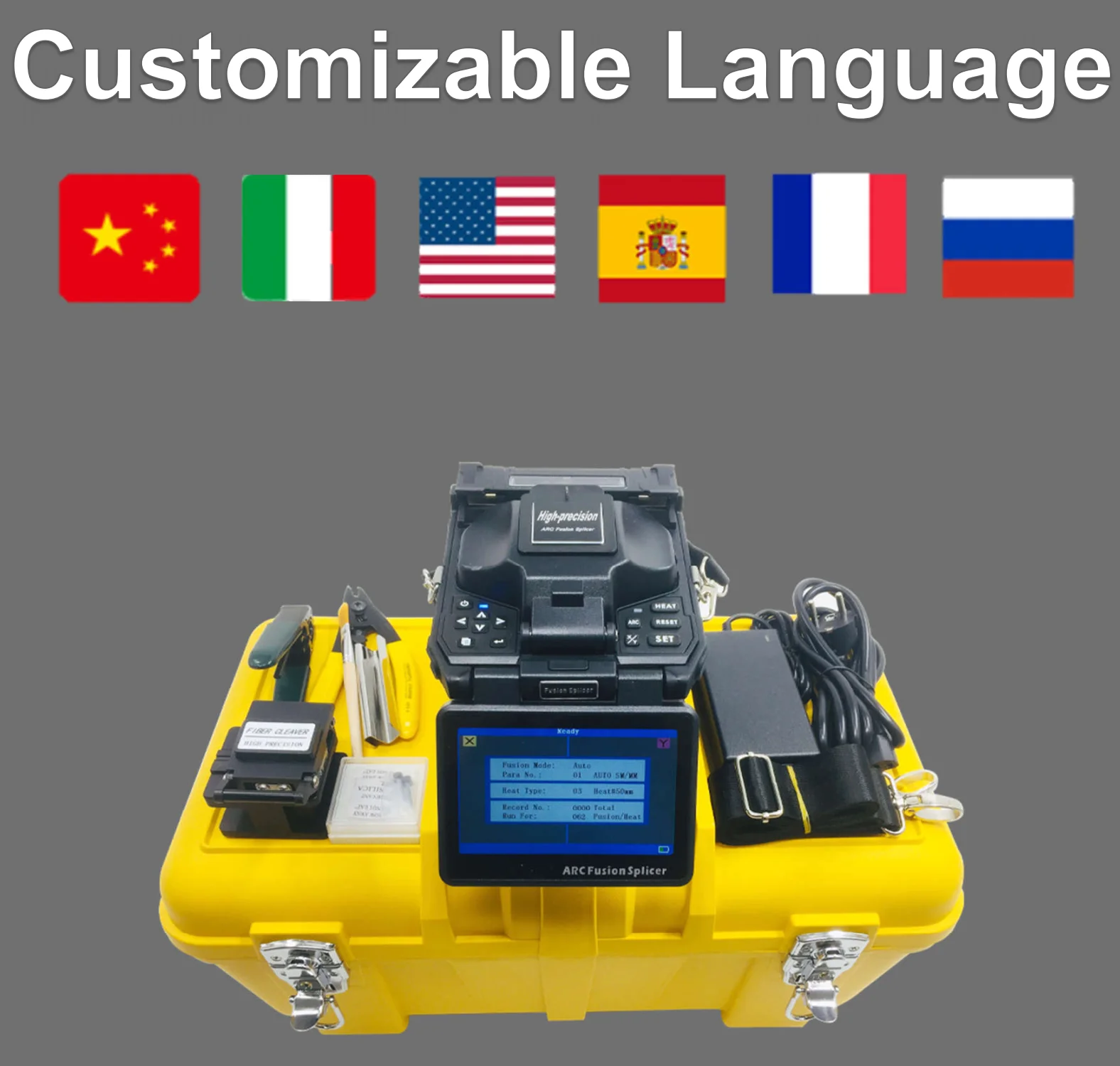

Splicing Display
Specifications
|
Applicable fiber
|
SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), others(including G.657)
|
|
Applicable fiber
|
SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655)
|
|
Diameter of cladding
|
80 -150μm
|
|
Diameter of coating
|
160 – 900μm
|
|
Typical splice loss
|
SM:0.02dB, MM:0.01dB, DS:0.04dB, NZDS:0.04dB
|
|
Return loss
|
>60db
|
|
Fiber cleaved length
|
10-16mm (coating diameter< 250μm ), 16mm(coating diameter: 250-1000μm )
|
|
Splicing program
|
40 groups
|
|
Operate mode
|
Manual, Automatic
|
|
Auto-heating
|
Available
|
|

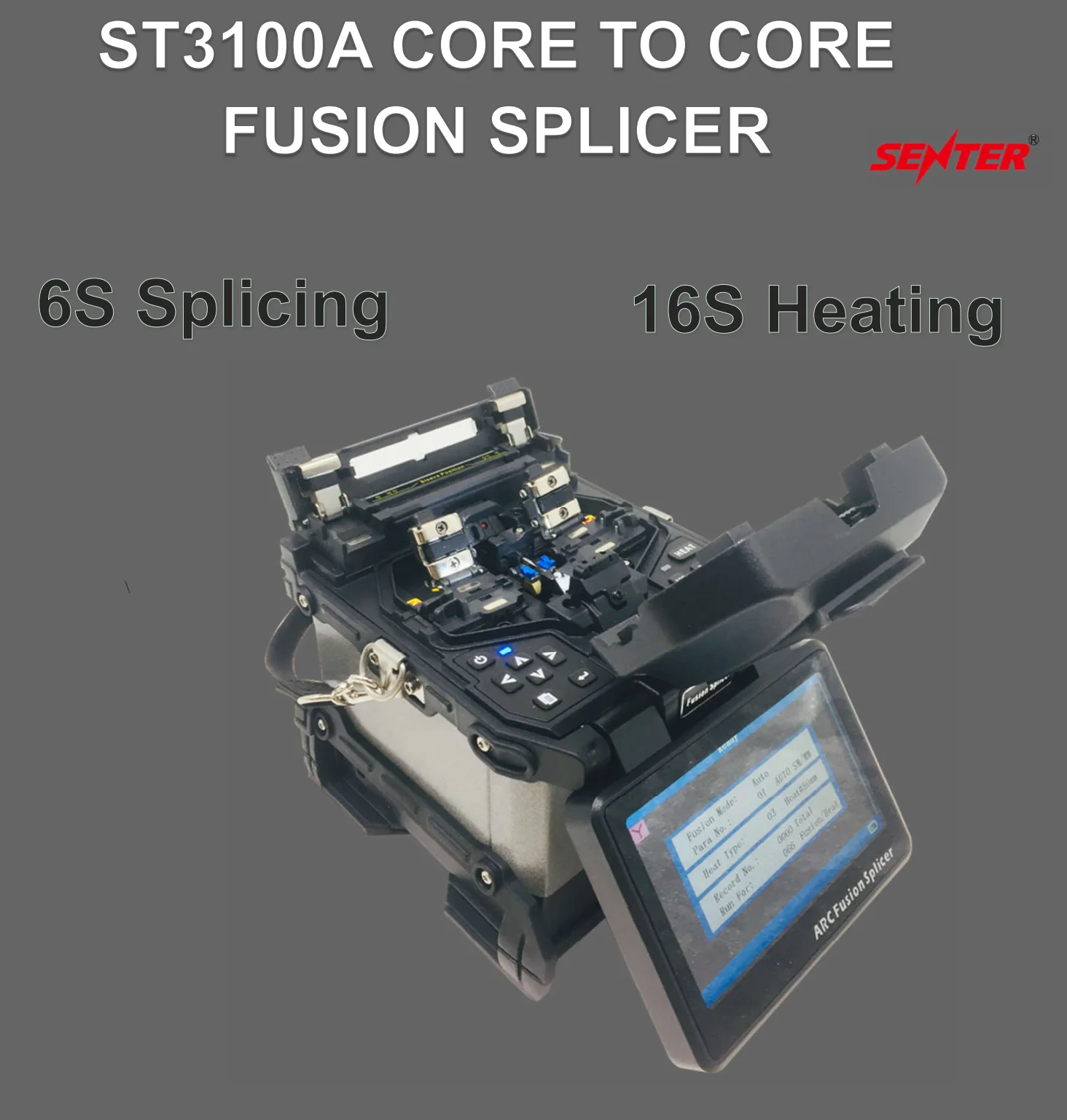

Typical splicing time
|
6 seconds
|
|
Tube heating time
|
16 seconds for 60mm and 40mm shrinkable sleeves
|
|
Fiber view magnification
|
250X(X or Y view), 125X(X and Y view)
|
|
Viewing method and display
|
2 CMOS cameras, 5.0 inch color LCD monitor
|
|
Storage of splice result
|
4000 results
|
|
Loss evaluation
|
Available
|
|
Tension test
|
1.8-2.2N
|
|
Interface
|
GUI menu interface, easier operation
|
|
Battery capacity
|
5200mAh Li-battery, typical 250 cycles(splicing and heating),support independent charging
|
|
Power supply
|
Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V
|
|
Electrode life
|
More than 4000 ARC discharges, can be replaced conveniently
|
|
Terminals
|
USB 2.0 port, for uploading splice results and upgrading software
|
|
Operating condition
|
Altitude: 0-5000m, Humidity: 0-95%, Temperature: -25℃～+50℃;Wind speed: max 15m/s
|
|
Dimension
|
160mm(L)x136mm(W)x140mm(H)
|
|
Weight
|
2.2kg including battery
|
