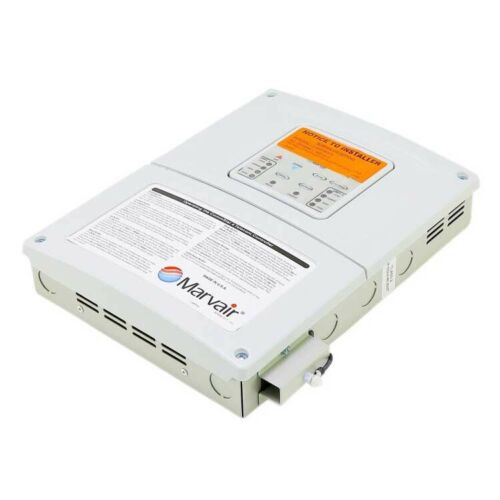

Marvair Airxcel CommStat4 HVAC Controller
Product Details:
A single CommStat 4 will control two redundant air conditioners or heat pumps, but has the capability to be daisy chained with a second CommStat 4 unit for controlling up to four air conditioners or heat pumps in a shelter. The CommStat 4 has seven outputs for remote alarms or notification.
A unique Marvair feature, the Comfort button, allows a service tech to easily change the temperature to provide a comfortable working environment. After 90 minutes, the temperature set points automatically revert back to the programmed temperature set points. The CommStat 4 also stores the last 10 ten faults that were registered.
FEATURES / BENEFITS
THERMOSTATS
-
Thermostat Range:
-
Cooling: 65° - 95°F (18° - 35°C) in 1° increments.
-
Heating: 50° - 80°F (10° - 27°C) in 1° increments.
-
-
Differential:
-
Adjustable ON-OFF differential for both Stage 1 and Stage 2
-
Adjustable changeover differential between heating and cooling.
-
-
Control Voltage: 24 VAC
-
COMMSTAT 4 INPUTS
-
Input power
-
Modem Connection
-
Control voltage
-
Line Voltage
-
Temperature Sensors
-
Smoke Detector
-
Hydrogen Detector
-
Generator Relay
-
Economizer Mode Status Monitoring
-
Lockout Relay
-
Aux 1/ Aux 2
