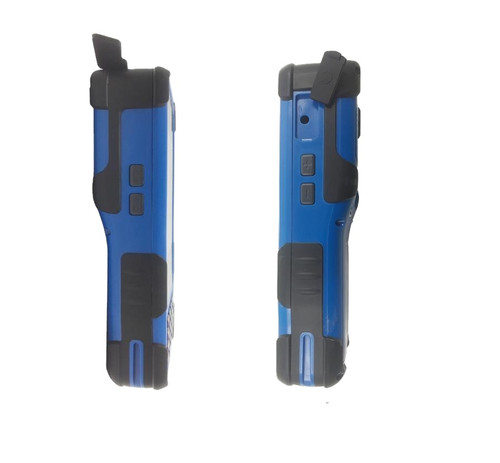

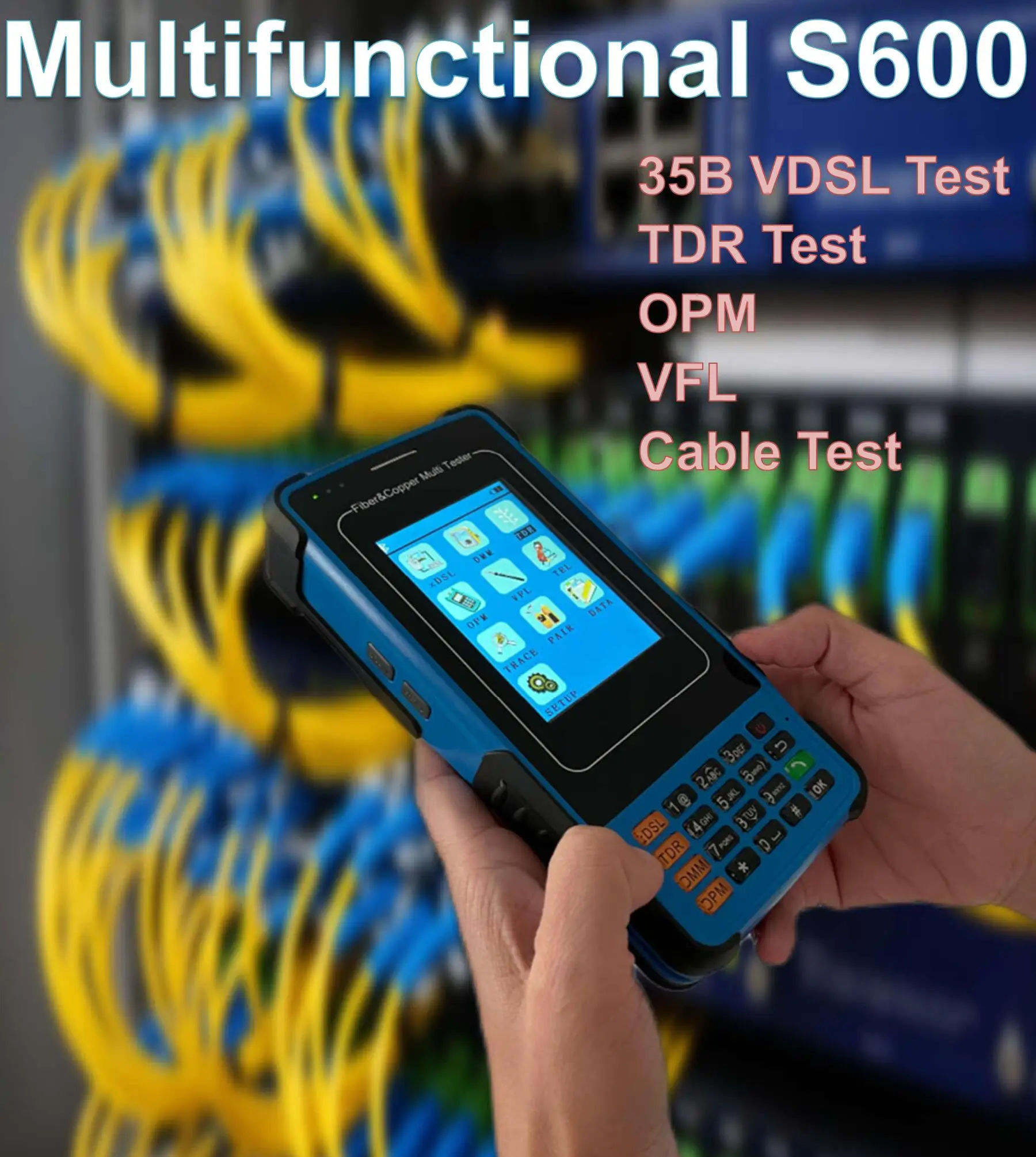

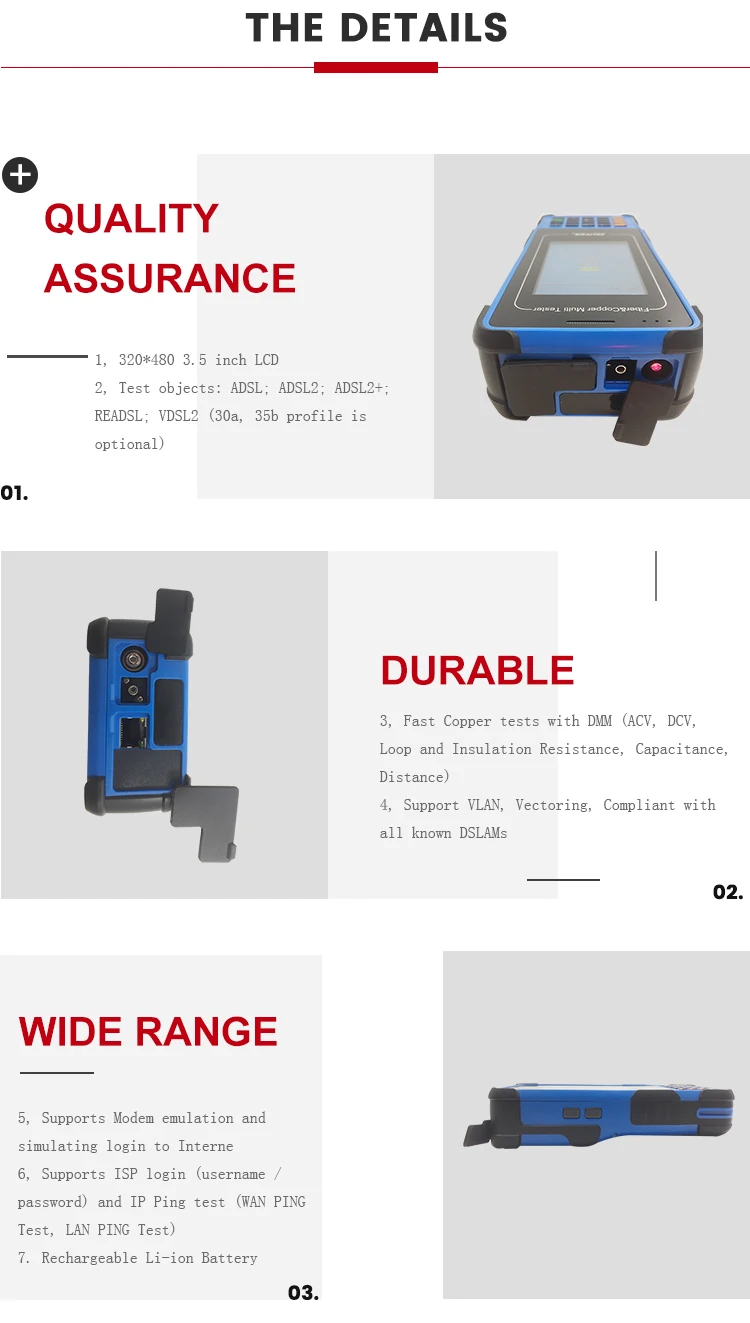

Product Overview
Technical specification of S600
| xDSL Index | |
| xDSL test main functions | Physical Layer info PPPoE Dial FTP Client, Fixative IP Network Layer Test Modem Emulation PING Support VLAN, HLOG, QLN Error Code Statistics Bit Graph Display BPT/SNR Data Modem Parameter Setting(VPI/VCI) |
| ADSL Index | |
| Standards | ITU G.994.1(G.hs), ITU G.992.5, ITU G.992.5 Annex L. The max distance which can be connected is 6.5km. Be compatible with ADSL, ADSL and READSL |
| Attenuation | 0-63.5dB |
| Noise margin | 0-32dB |
| Upstream channel rate( interweaved/ fast mode) | 0-1.2Mbps |
| Downstream channel rate( interweaved/ fast mode) | 0-24 Mbps |
| The modulating bits in the DMT sub-channel | 0-15 and each sub-channels' frequency points |
| The number of errors codes | CRC, HEC, FEC, NCD, OCD |
| Other parameters | The output power of DSL. It can display every condition of the DSL line: lost signal and shutdown of link |
| VDSL2 Index | |
| Standards | ITU G.993.2(VDSL2). Be compatible with ADSL2+, ADSL standard |
| Upstream channel(interweaved/fast mode) | 0-100M |
| Downstream channel rate(interweaved/fast mode) | 0-100M |
| The modulating bits in the DMT sub-channel | 0-15 and each sub-channels' frequency points |
| The number of error codes | CRC, HEC, FEC, NCD, OCD |
| Other Parameters | The output power of DSL It can display every condition of the DSL Line: lost signal and shutdown of link DSLAM information Error seconds INP pulse protection SNR channel figure Channel noise margin figure |
| Support profiles | Profile 8a, 8b,8c,8d,12a, 17a,30a, 35b |
| DMM Test index | |
| DC voltage | -400 to 400V;Resolution:0.1V |
| AC voltage | 0-290v |
| Capacitance | 0-1000nF;Accuracy:0-10nF:± 2nF, 10nF-1000nF:± 2%± 2nF |
| Loop resistance | 0-20KΩ; Accuracy: 0-100: ±3%±4Ω, 100-500:±3%, 500-20KΩ:±2% |
| Insulation resistance | 0-50MΩ±; Accuracy:0-1.0M:±0.1 MΩ, 1.0-30M:±10%±0.5MΩ |
| TDR Index | |
| General specifications | Check line mix and break fault Auto and manual distance test |
| Test range | 8km(4/16/32km is optional) |
| Highest resolution | 1km |
| Dead zone | 0m |
| Power consumption | 1W |
| VOP adjusting range | 100-300m/us |
| Distance test accuracy | <=1m |
| Pulse test voltage range | >=30V |
| Cable Tracking Index | |
| Test cable type | Network cable, twisted pair cable, telephone line, USB cable, coaxial cable |
| Line status test | Determine open or short circuit |
| Voltage polarity detection | Positive and negative of DC voltage |
| Distance of signal transmission | No less than 3KM |
| DC voltage | No more than 48v |
| Check Line Sequence Index | |
| Function | Support generate network line signal to view the network check line sequence with the receiver |
| Feature | Easy to operate: determine the line sequence by receiving side lights order |
| Optical Power Index | |
| Wavelength range(nm) | 800~1700 |
| Photosensing material | InGaAs |
| Power test range(dBm) | -70~+10 or -50~+26 |
| Error range | ±5% |
| Display distinguishability | Linear display: 0.1%; logarithmic display: 0.01dBm |
| Adapters | FC, ST, SC |
| VFL | 800-1700 |
| Wavelength | InGaAs |
| Output power | -70~+10 or -50~+26 |
| Connector | ±5% |
| Working mode | Linear display: 0.1%; logarithmic display: 0.01dBm |
| Applicable fiber | FC, ST, SC |

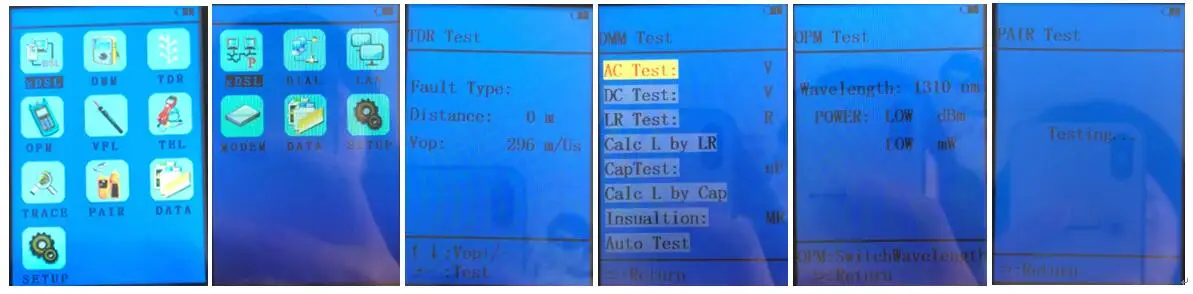

Main Interface
