SCADA Li battery Charger/Battery Charger manage system single phase/3Phase 220Vac /380VAC/400VAC 24VDC DC Power Supply for the Telecom
Products Description
This type Embedded Power System is widely deployed in the Telecom/Industrial environment today, a new generation “Green & Energy Saving” system, aiming at outdoor low power mobile Telecom/Industrial power market, meeting the trend of Telecom base station development, saving construction cost and shortening time. The system is highly adaptable with environment, features with wide operating temperature range, meeting the demand of high level users.
|
Product name:
|
|||||
|
Rectifier Module
|
220Vac/24Vdc-30AS Embedded Power System
|
||||
|
Item
|
Description
|
Note
|
|||
|
Controller
|
M30.1.2V1
|
1 pc
|
|||
|
Rectifier
|
BR241800
|
1pc
|
|||
|
Distribution Unit |
AC
|
Input: 220Vac
|
|||
|
DC |
Load distribution: 135A×3
|
Rail-mount Terminal
|
|||
|
Battery distribution:135A×1
|
Rail-mount Terminal
|
||||
Product Parameter

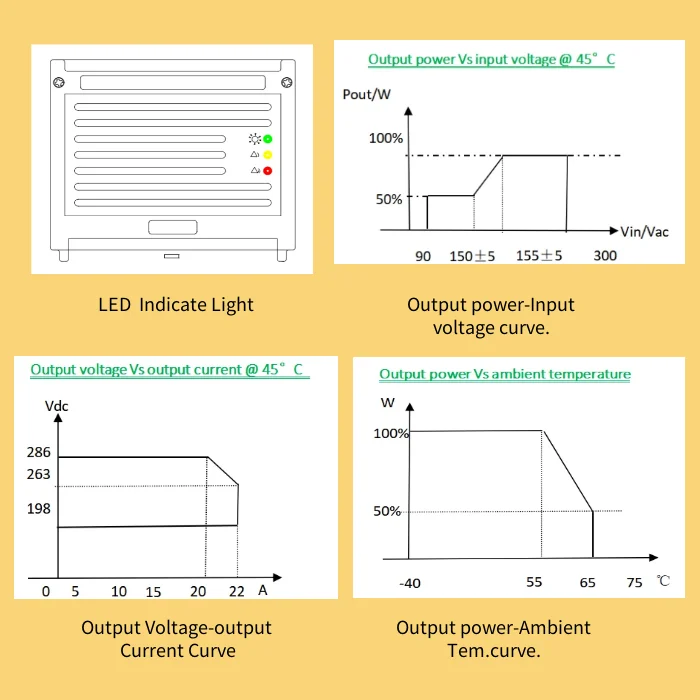

Rectifier Technical Parameter：
* This part can design with your application parameter: modules configuration, circuit breaker installation, monitor display. Order whole DC power system cabinet also available.
|
Rectifier Module
|
Input Amps@Full load 110/220V
|
Output Current
|
Output Voltage
|
Weight
|
|
|
BR241800
|
10.9/ 8.18
|
60A, adjustable 1~60A
|
- 26.7Vdc, adjustable -21~ - 29Vdc
|
2.3kgs
|
|
|
Model
|
Configuration
|
Size(W*D*H)
|
Weight
|
||
|
BWT220/24- 60AS
|
Single phase, 1800W@220V, 1200W@110V, 60 amp output
1 BR241800 module, monitor, BLVD, + busbar, 3 DC rail-mount terminal, 1 Battery rail-mount terminal, SNMP |
482mm*410m m*88mm
|
15kgs
|
15kgs
|
|
|
BWT220/24- 120AS
|
Single phase, 3600W@220V, 2400W@110V, 120 amp output
2 BR241800 module, monitor, BLVD, + busbar, 3 DC rail-mount terminal, 1 battery rail-mount terminal, SNMP |
482mm*410m m*88mm
|
17.5kgs
|
17.5kgs
|
|
|
BWT220/24- 180AS
|
Single phase, 5400W@220V, 3600W@110V, 180 amp output 3 BR241800 module, monitor, BLVD, LLVD, + busbar, 3 DC rail-mount terminal, 1
battery rail-mount terminal , SNMP |
482mm*410m m*88mm
|
20kgs
|
20kgs
|
|
Customize Range:
Regard as HF Switching Power Supply / rectifier. we can customize are as following
1. Input:：220VAC +/-15%, 50/60HZ
Input:：110VAC +/-15%, 50/60HZ
2. Output：24VDC, 10A/20A/30A/40A/50A/60A/120A/180A/240A/300A
Output：48VDC, 10A/15A/20A/25A/30A/50A/60A/100A/150A/200A
Output：110VDC, 20A/30A/40A/60A/80A/100A/120A/140A/200A/300A
Output：125VDC, 20A/30A/40A/60A/80A/100A/120A/140A/200A/300A
Regard as HF Switching Power Supply / rectifier. we can customize are as following
1. Input:：220VAC +/-15%, 50/60HZ
Input:：110VAC +/-15%, 50/60HZ
2. Output：24VDC, 10A/20A/30A/40A/50A/60A/120A/180A/240A/300A
Output：48VDC, 10A/15A/20A/25A/30A/50A/60A/100A/150A/200A
Output：110VDC, 20A/30A/40A/60A/80A/100A/120A/140A/200A/300A
Output：125VDC, 20A/30A/40A/60A/80A/100A/120A/140A/200A/300A
Output：220VDC, 10A/20A/30A/40A/60A/70A/100A/120A/150A
|
No
|
Item
|
Technical Specifications
|
||||
|
1
|
Environmental Requirements
|
Operating temperature
|
-40℃~55℃(-40 to +131°F)
|
|||
|
Storage temperature
|
-45℃~70℃ (-40 to +158°F)
|
|||||
|
Relative humidity RH
|
5%~95%RH（40±2℃，no condensation）
|
|||||
|
Atmospheric pressure
|
62kPa~106kPa
|
|||||
|
Altitude
|
0m~2000m
|
|||||
|
Degree of protection
|
IP20
|
|||||
|
AC Distribution
|
Input mode
|
Single phase input
|
||||
|
Input voltage
|
220Vac
|
|||||
|
Voltage range
|
90V ~ 290VAC
|
|||||
|
Frequency
|
45 Hz ~ 65Hz
|
|||||
|
System efficiency
|
≥93.2% （@230Vac，Peaking）
|
|||||
|
System input power factor
|
≥0.99（@230Vac，full load）
|
|||||
|
THD
|
＜5% （@230Vac，full load）
|
|||||
|
System protection function
|
AC overvoltage& under-voltage protection; DC overvoltage&under- voltage.current limit.short circuit protection; battery and
rectifier over temperature protection; automatic restoration happens after the over-voltage.over-current.under-voltage and over-temperature disappear. |
|||||
|
3
|
DC Distribution
|
System output voltage
|
Rated output：24VDC
|
|||
|
Adjustable range: 20VDC-30VDC continuously adjustable
|
||||||
|
System output current
|
24V/30A
|
|||||
|
System load regulation
|
≤±0.5%
|
|||||
|
System voltage regulation
|
≤±0.5%
|
|||||
|
System stability precision
|
≤±0.5%
|
|||||
|
Current sharing capability
|
module current sharing not more than ±5％
|
|||||
|
Phone balance weight noise
|
≤2mV（@230Vac，full load）
|
|||||
|
Peak-peak noise voltage
|
≤200mV(0 MHz ~ 20MHz) （@220Vac，half load ~ full load）
|
|||||
|
system current limit value
|
Power system: 1-33A,Note: can be settable continuously
|
|||||
|
System voltage drop
|
At full load. the voltage drop of DC distribution within the rack shall below 500 mV
|
|||||
|
Output distribution
|
Load distribution:3@ 135A Rail Mount Terminal
|
|||||
|
Battery distribution
|
Battery distribution：1*@135A Rail mount Terminal
|
|||||
Monitor Control Parameter：
|
Digital Input
|
6 DI
|
LCD display
|
Input/output voltage、Frequency、output current、Environment、Rate
|
|
|
Local Interface
|
Display, Menu Structure Key Pads, LED
|
Power status
|
City power、Output、Under voltage、overload voltage
|
|
|
Remote Monitor
|
TCP/IP,Rs485,SNMP (Optional),6 alarm Relays
|
Operating Temp.
|
-40 to +55°C (-40 to +131°F)
|
|
|
Battery Mid-Point
|
B-V2 /B-V1
|
Storage temp
|
-40 to +70°C (-40 to +158°F)
|
|
|
User
|
4 Group
|
Humidity
|
5% to 95% RH non-condensing
|
|
|
intelligent Wake management
|
Yes
|
MTBF
|
> 10,0000 hours (Ambience : 25°C)
|
|
|
Battery Temp. Sensor
|
Yes
|
Historical Alarm Records
|
Up to 1000 Units
|
|
|
Temperature compensation
|
Yes
|
Altitude（M）
|
≤3000m,more than, Rise every 100m, 1% derated.
|
|
|
Battery Self-Test
|
Yes
|
Details Images

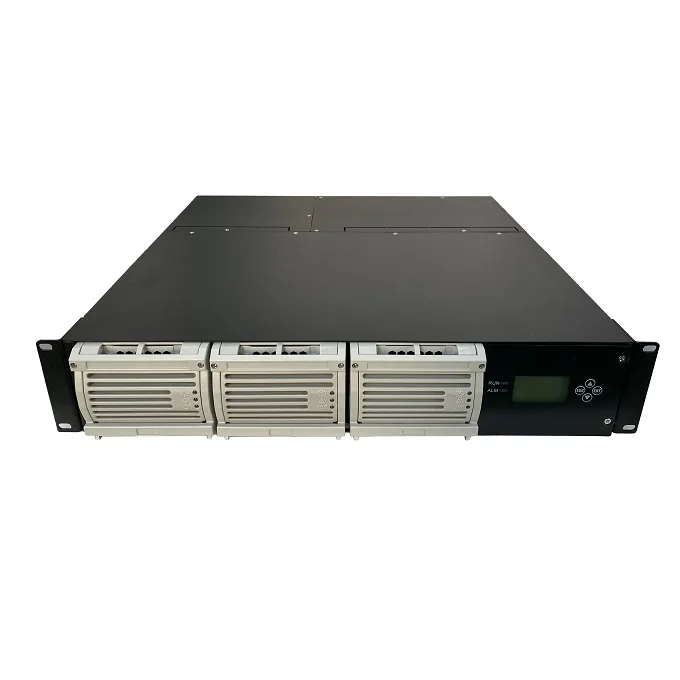

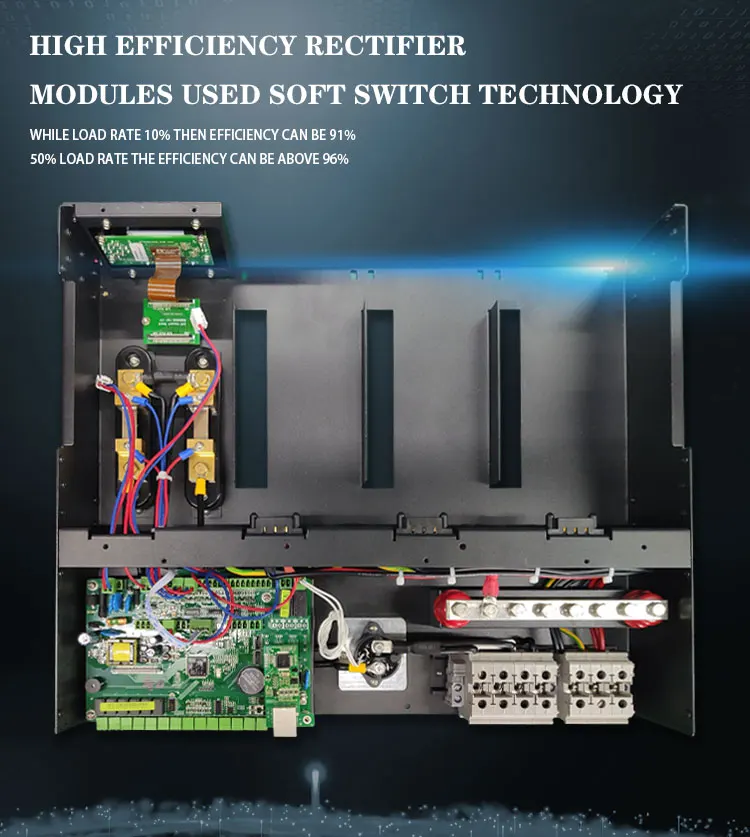

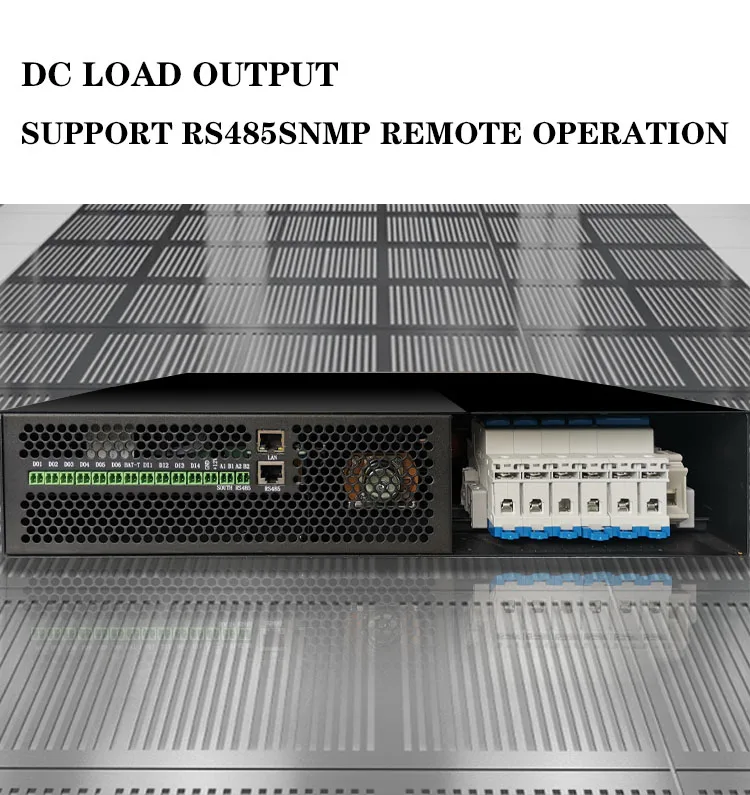

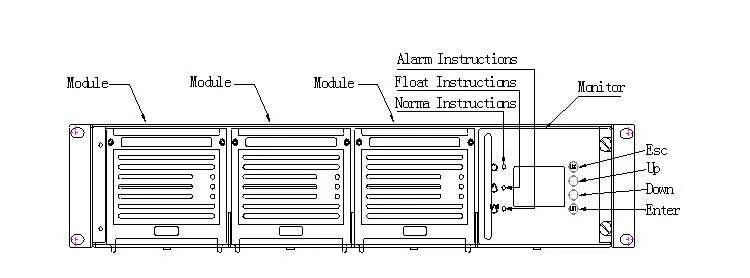

Appearance of AC/DC Distribution Frame：
Application of the AC/DC Distribution：
Applications Case
