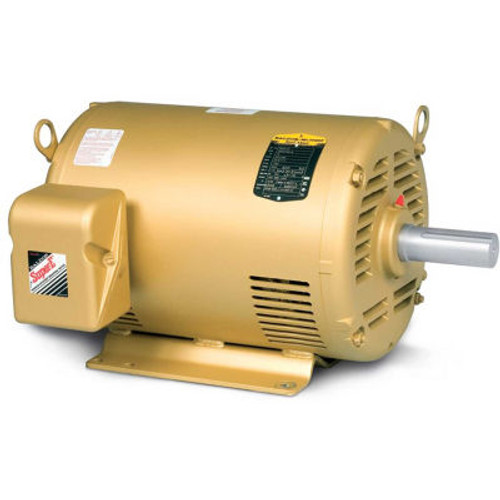

Baldor-Reliance Motor EFM4104T, 30HP, 1770RPM, 3PH, 60HZ, 286T, 1056M, TEFC, F2

Baldor-Reliance Motor, 30HP,1770RPM,3PH,60HZ,286T,1056M,TEFC,F2Features:Heavy gauge steel and cast iron framesBall bearingsISR® (Inverter Spike Resistant®) copper windingsLow-loss electrical grade lamination steelThree year warrantyTypical Applications:Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Class F insulated, 1.15 service factor. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and constant torque speed range with properly sized and adjusted variable frequency drives. Product Specifications HORSEPOWER30 ENCLOSURETEFC FRAME286T MOUNTINGRigid NAMEPLATE RPM1770 PHASE3 MOTOR RPM 60Hz1770 VOLTAGE230/460 HERTZ60 SERVICE FACTOR1.15 AMBIENT TEMP C40 WEIGHT444 RPM RANGE1701-1800 DESIGN CODEB BEARING-DRIVE-END6311 BEARING-OPP-DRIVE-END6309 FL EFFICIENCY93.6 INSULATION CLASSF FL AMPS72/36 KVA-CODEG 208V AMPS76 BRANDBaldor-Reliance DOE-CODE010A MANUFACTURER PART #EFM4104T is_motorYes CUSTOMER-PART-NUMBER-- GREASEPOLYREX EM ENCLOSURE TYPETotally Enclosed SPACE-HEATER-AMPS-- SPACE-HEATER-VOLTS-- MAX. SPACE HEATER TEMP.-- POWER-FACTOR83 DRIVE END FLANGEStandard C-DIMENSION INCHES27.76 SERIAL-NUMBER-- POLES4 SPEC. NUMBER10C156Y758G1
