Quick Details
- Type:
-
Portable
- Place of Origin:
-
Shaanxi, China
- Brand Name:
-
LONN
- Model Number:
-
LONN-6000
- Enviroment temperature:
-
-20℃~+55℃(typical value) -40℃~+70℃( limit value)
- Enviroment humidity:
-
0-95% Relative humidity (non-condensing)
- Detection pattern:
-
the active pump absorption
- Protection grade:
-
IP66
- Type of alarm:
-
Audible alarm 95 dB@30cm, red LED alarm light, fall-down alarm
- Explosion-proof:
-
Exd II CT4 Ga ( Intrinsically safe )
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 27X20X11 cm
- Single gross weight:
- 3.000 kg
- Package Type:
- carton package suitable for transportation
- Lead Time :
-
Quantity(Sets) 1 - 5 >5 Est. Time(days) 15 To be negotiated

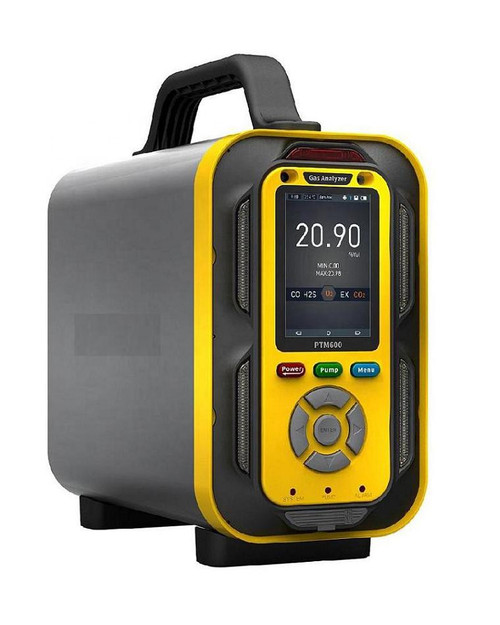

Product Description
This is a intelligent and high-performance detecting apparatus which is able to carrying out continuous detection for many gases (volatile organic compound, such as VOC and TVOC, hazardous gas), what's more, which is equipped with fall down alarm function for personnel. The apparatus has applied more than 30 kinds of intelligent sensors which can be plugged and played at the same time, including imported PID light ion gas sensor with original packaging, electrochemical poisonous gas sensors, oxygen sensors, catalytic combustion sensors, infrared combustible gas, CO2 sensors and CH4 sensors, as a result, which can detect 1-6 kinds of hazardous gases at the same time. Due to the random combination and flexible configuration of sensors, it can adapt for detecting demands of different industries.
Details Images
Specification
| Product name | Pump-Absorption Gas Analyzer Apparatus |
| Support sensors | Electrochemical, infrared, PID, catalytic combustion |
| Compound mode | Single,two-in-one,three-in-one,four-in-one,five-in-one and six-in-one for choice |
| Sample mode | the active pump absorption |
| Dimension | Length270mm* height 193mm *width 106mm |
| Outer shell material | Wear-resisting polycarbonate housing + Aluminium alloy +stainless steel |
| Weight | 2.1kg-3kg |
| Battery | Due to the large-capacity rechargeable lithium battery with 11,000 mAh, the product can support power supply and charging by |
| Charger | USB charger with square socket, compatible with universal USB phone charger |
| Type of alarm | Audible alarm 95 dB@30cm, red LED alarm light, fall-down alarm for personnel |
| Alarm Setting | A1 Alarm value, A2 Alarm value; TWA alarm value, STEL alarm value |
| Display | 3.2 inches TFT large color screen |
| Backlight | Manual, however, it will be automatic during alarm |
| Key | 7-key navigation |
| Direct reading | Measurement value, data record status, working status of pump |
| Data Logging | Due to the automatic and single-point storage, the storage intervals of 1-6 sensors can be self-defined |
| Data download | Support USB measurement date download |
| Data printing | Supporting Bluetooth Wireless Printing for Micro Portable Data Printer (optional) |
| Calibration | 2-4 degree targeted points calibration, one-key zero point setting |
| Explosion-proof | Exd II CT4 Ga ( Intrinsically safe ) |
| Protection grade | IP66 |
| Operating mode | User mode and administrator mode can be used for choice. |
| Enviroment temp. | -20℃～+55℃（typical value） -40℃～+70℃（ limit value） |
| Enviroment humidity | 0-95% Relative humidity (non-condensing) |
