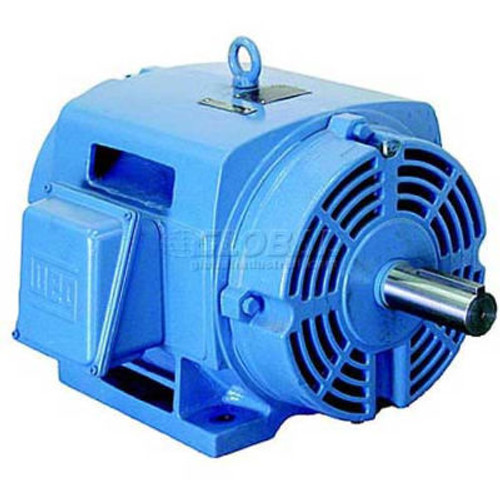

WEG NEMA Premium Efficiency Motor, 02512OT3E324T, 25 HP, 1200 RPM, 208-230/460 V, ODP, 324T, 3 PHWEG Premium Efficiency motors meet or exceed all NEMA Premium and CEE requirements for energy efficiency. These Open Drip Proof (ODP) motors are designed for environments where dirt and moisture are minimal. Design B torque and high efficiency design from E143/5T through 444/5T frames (design A for frames 447/9T and 5010/11T). These motors are specifically designed to provide maximum ventilation and heat dissipation. Product Specifications HORSEPOWER25 ENCLOSUREODP FRAME324T MOUNTINGRigid NAMEPLATE RPM1200 PHASE3 MOTOR RPM 60Hz1200 VOLTAGE208-230/460 HERTZ60 SERVICE FACTOR1.15 RPM RANGE1101-1200 COMPATIBLE WITH/REPLACES - 1Baldor EM2532T, GE 5KE324AC305, Magnetek E612, Marathon 324TTDC6076 COMPATIBLE WITH/REPLACES - 2Reliance P32F3024, USEM D25E3D FL EFFICIENCY93 ENCLOSURE TYPEOpen/Drip Proof FL AMPS67.2-60.8/30.4 BRANDWEG C-DIMENSION INCHES26.181 TYPENEMA Premium Efficiency MANUFACTURER PART #02512OT3E324T is_motorYes KILOWATTS18.5
WEG NEMA Premium Efficiency Motor, 02512OT3E324T, 25 HP, 1200 RPM, 208-230/460 V, ODP, 324T, 3 PH
(No reviews yet)
Write a Review
Write a Review
WEG NEMA Premium Efficiency Motor, 02512OT3E324T, 25 HP, 1200 RPM, 208-230/460 V, ODP, 324T, 3 PH
- SKU:
- SGB874117
- Condition:
- New
- Availability:
- Usually Ships in 24 Hours
- Shipping:
- Calculated at Checkout
- Warranty:
- 1 year replacement Warranty. Details
- Returns:
- 30 Days Money Back Guarantee. Details
£3,048.68
