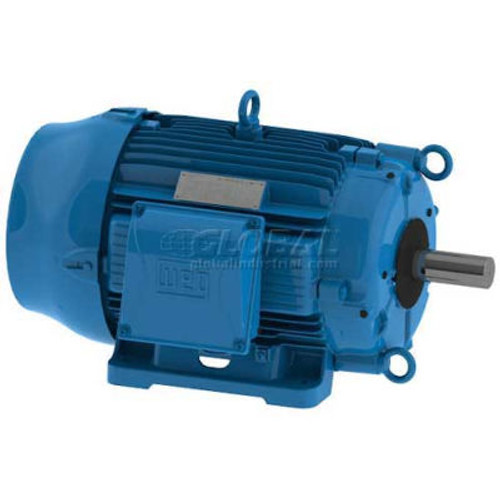

Weg Cooling Tower Motor / 02512At3Hct324Tf1-W2 / 25 Hp / 1200 Rpm / 575 Volts / 3 Phase / Teao

WEG Cooling Tower Motor, 02512AT3HCT324TF1-W2, 25 HP, 1200 RPM, 575 Volts, 3 Phase, TEAOWEG's W22 Cooling Tower - High or NEMA Premium Efficiency motors meet or exceed all NEMA Premium and CEE requirements for energy efficiency. These TEFC motors are built according to NEMA specifications and designed for operation in 100% humidity and the most corrosive environments. The entire line is certified Inverter Rated for use with a VFD. They are designed to operate in either horizontal or shaft up position. As with any other WEG motor, Cooling Tower motors are tested in accordance with IEEE 112, Method B, and their efficiency values are certified by UL Labs (CSA C390). Cooling Tower motors will meet Design B torques, maintaining exceedingly high breakdown and locked rotor torque while providing the highest rated efficiency levels. Product Specifications BRANDWEG MANUFACTURERS PART NUMBER02512AT3HCT324TF1-W2 HORSEPOWER25 MOTOR RPM 60Hz1200 VOLTAGE575 PHASE3 FRAME324T ENCLOSURE TYPETotally Enclosed RATED RPM1200 MOUNTINGFoot Mount SERVICE FACTOR1.25 is_motorYes RPM RANGE1101-1200 FL EFFICIENCY93.0 HERTZ (HZ)60 FL AMPS24.3 ENCLOSURETEAO
