Brand: TECHTONGDA
Color: Gray
Features:
- [Attention]:Voltage of the machine is 220V. Please confirm voltage before you order it.
- [Features]:1.The device uses an electronic constant force speed control line, the digital directly shows the speed of the shaft, and is equipped with a dispersion impeller and a grinding disc.
- [Features]:2. It can adapt to different test requirements of the laboratory, and can directly calculate the line speed and material viscosity of the stirring, dispersing and grinding disc according to the display speed of the rotating shaft.
- [Features]:3.Driven by the high speed operation of the motor, the dispersing head of the motor produces a high speed tangential straight line. Under the action of huge centrifugal force, the material produces strong hydraulic shearing and high-frequency mechanical effects, which cause the fluid material to withstand thousands of shear and high-frequency mechanical effects per minute, thus achieving effective mixing, dispersion and uniform effects.
- [Features]:4.Variable Frequency control, no carbon brush, low carbon environmental protection, no spark, low noise.
TECHTONGDA
Details: Why do you choose the machine
1.One machine, multi-usage. High efficiency, Good mixing effect.
2.Easy to wash, Manual lifting, simple and convenient.
3.It can realize scattered, stir, mix. Used in coatings, printing ink, paste, dye, pesticides and cosmetic industries and so on.
4.Can realize refining grinding.
5.It is widely used in laboratory science test, production simulation and to develop new products, and it is also colleges, universities and research institutions' ideal experimental equipment.
Main Parameter
Working Voltage:AC220V/50Hz
Power:750W
Operation Type:Variable Frequency
Cylinder Volume:1.5 L
Lifting Type:Tube Lifting
Handling Capacity:4.4-11LB(2 to 5 kg )[water as a medium]
Medium Viscosity:Less than 10000cp
Speed Range:100-8000r/min
Sanding Discdiameter:￠2.3''(60mm)
Shipping Weight:88LB(45KG )
Package Size:17.72*15.75*31.50''(45*40*80cm)
Mixing and Dispersing Impeller Diameter:￠2''(50mm) ￠2.3''(60mm)
Package Content:(022638)

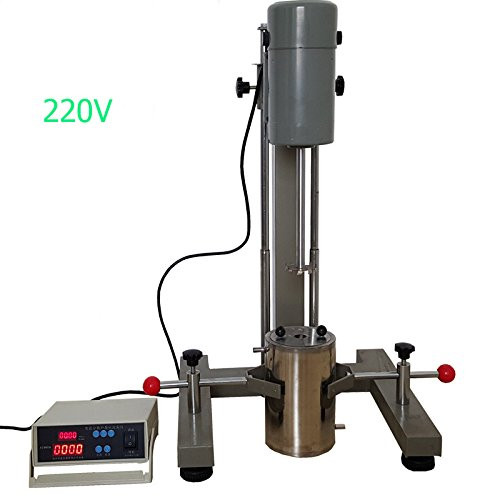

High speed variable frequency dispersion machine 220V*1
Necessary accessories*1
UPC: 748497508431
EAN: 748497508431
