Brand: haocheng
Features:
- 3L Rotary Evaporator ,Standard :3L Rotary Flask Ball-Milling Connection of Collecting Bottle, Bath Temperature Range: 0-99. Easy to Detach And Clean, Better Sealing Quality
- 110V/60Hz 220V/50Hz Bottle Rotary Speed: 0-180rpm, It Is Easy to Adjust By Buttons On Control Center.
- High Quality Material Made Water Bath, Water Bath Lifting with Automatic Control, 120 mm
- Perfect for The Concentration, Crystallization, Drying, Separation And Solvent Recovery of The Pharmaceutical, Chemical and Biological Pharmaceutical Industries
- 1 Year Warranty Free shipping Delivery period 5-12 working days
Shenzhen Haocheng Instrument Co.,Ltd
Details:
Introduction

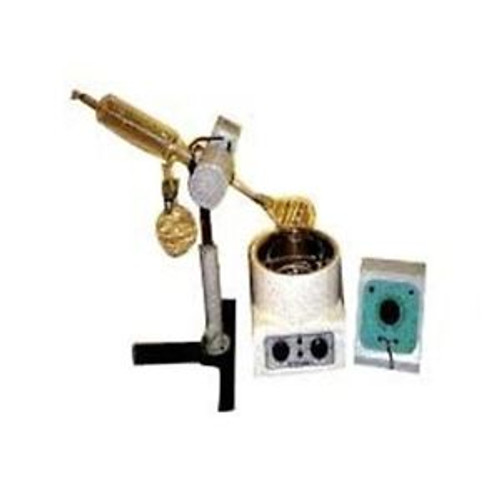

The equipment for purification distillation test rotates and shapes a thin film in negative pressure condition by heating, evaporates efficiently, and then condenses and recollects solvent to purify and separate.
The rotary evaporator can be made into system devices with Circulating Water Vacuum Pump , Vacuum Pump , Low Temperature Circulating Pump, Circulating Cooler, Constant Temperature Reaction Bath , Low Temperature Cooling Liquid Circulating Pump.
Specification
Condenser: Vertical Condenser
Collect Flask: 2L
Rotary Flask: 3L/2L
Motor Power: 60W
Power Voltage: 220/110V for Optional
Bath Power: 1500 W
Bath Volume: 3L
Bath Material: SS304 Combined Bath &Teflon Material Completely Closed Heated
Evaporation Rate(Water): 2.5L/ H
Speed Range: 0 - 180 RPM
Lift and Stroke: Automatic Control, 120 mm
Glass Material: GG-17 Glass
Heating Temperature Range: Rm-99 Degree
Heat Control: PID
Heat control accuracy: ±1 Degree
Ultimate Vacuum: 0.098 Mpa
Dimensions (W x H x D):650Ã520Ã650 mm
Weight: 40 kg
