Brand: OMAX
Features:
- Total magnification - 3.5X-90X; Microscope body - Trinocluar, 360degrees; rotatable viewing head - 45 degrees inclined ocular tubes - Diopter adjustment rings on both ocular tubes - Interpupillary distance adjustable: 1-3/4inch~ 2-3/4inch (47 ~ 73mm) - Pulling bar to switch the light path from left ocular tube to photo tube - Inner diameter of ocular tube: 30mm - Inner diameter of photo tube: 23.2mm - Mounting size for auxiliary lens: 48mm female thread
- Eyepiece - A pair of high eyepoint widefield WF10X/20 - A pair of high eyepoint widefield WF20X/10; Objective - Zoom 0.7X ~ 4.5X - Zoom ratio 6.4:1 - Auxiliary objective: 0.5X; Working distance - 100mm (3-15/16inch) without 0.5X auxiliary lens - 160mm (6-5/16inch) with 0.5X auxiliary lens on; Field of view - Max. 30mm (1-3/16inch) without 0.5X auxiliary lens - Max. 60mm (2-3/8inch) with 0.5X auxiliary lens; Articulating arm boom stand - Table clamp: Max. opening 2.4inch (62mm)
- Articulating arm: Spring loaded for easy operating, multi-arm provides more flexibility - 360 degrees rotating horizontally - Radius of working area: Max. 41inch (104cm) - Diameter of microscope body holder: 3inch (76mm) - Focus block: rack and pinion adjustment, range 55m; Illumination - 144 LED ring light - Intensity adjustable - Power: 90V ~ 265V AC - 48mm ring light adapter included
- Digital display system: - Display: 9.7inch Color LCD Touch Screen (1024x768) - 0.37X adjustable reduction lens to get larger field of view - Live preview frame speed: 17fps at 1024x768, 25fps at 640x480 - Camera resolution: 2560x1920 pixels (5M pixels) - Operating System: Android 4.2.2 - Connectivity: HDMI out, USB 2.0, SD, Bluetooth, WiFi
- 5-year warranty against manufacturing defects
OMAX

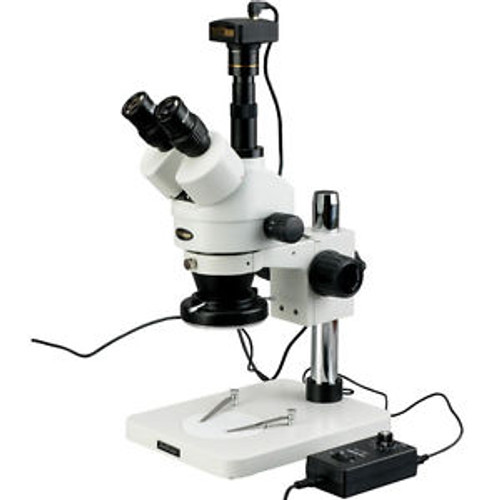

Details: This high end trinocular stereo zoom microscope system utilizes a fully coated optical system mounted on a flexible articulating arm mount with an integrated digital display solution. This digital display consists of a 5MP microscope camera combined with a 9.7 inch touchpad display, and is powered by the Android 4.2.2 system. The trinocular microscope head has diopter controls on the eyetubes of the microscope and provides a photo port for dedicated use with its microscope camera. It offers clear and sharp images with great flatness and contrast across the 3.5X-90X magnification range. It comes with widefield WF10X/20 and WF20X optics, 0.5X barlow lens, a variable 144-LED illuminator with dimmer, and the articulating arm provides a broad area of use and a high degree of flexibility. This microscope offers a field of view as large as 60mm (2-3/8") with working distances as long as 160mm (6-5/16") with the 0.5X auxiliary objective mounted, and a wide 6.4:1 zoom ratio. The variable 144-LED ring light is intensity adjustable, providing cool, even and bright LED illumination. It is an ideal instrument for those who require precision-oriented observation across a wide continuous magnification range.
UPC: 670541483671
EAN: 670541483671
