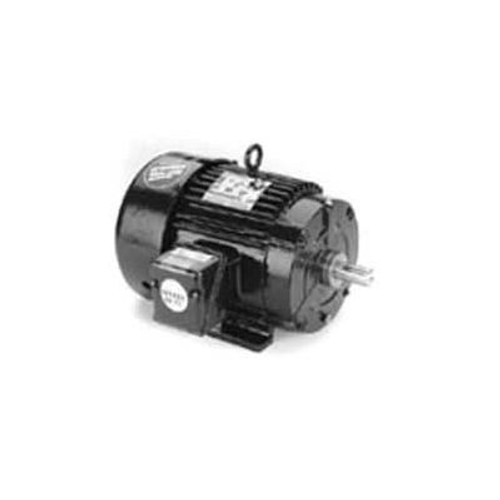

Marathon Motors Premium Efficiency Motor, U270, 60HP, 1200RPM, 230/460V, 3PH, 404T FR, DPMarathon's XRI Premium Efficiency motors are designed to conserve energy over extended time periods. These premium efficiency designs are available in both Totally Enclosed Fan Cooled and Open Drip Proof construction. Product Specifications HORSEPOWER60 ENCLOSUREDP FRAME404T MOUNTINGRigid NAMEPLATE RPM1200 PHASE3 MOTOR RPM 60Hz1200 VOLTAGE208-230/460 DUTYContinuous SERVICE FACTOR1.15 THERMAL PROTECTIONThermostats (Normally Closed) AMBIENT TEMP C40 WEIGHT964 CSAY RPM RANGE1101-1200 MODEL NUMBER404TTDS6086 BEARING-DRIVE-END6316 60 HERTZ kW45.0 BEARING-OPP-DRIVE-END6313 FL EFFICIENCY95.4 INSULATION CLASSB FL AMPS42-39.5/19.7 KVA-CODEH NEMA DESIGNB ASSEMBLYF1 (F2 Modification Available) APPROVAL-CEY DRIVE END BEARING SIZE6316 OPPOSITE END BEARING SIZE6313 STARTING TYPEAcross The Line BRANDMarathon Motors MANUFACTURER PART #U270 ORIENTATIONHorizontal is_motorYes IP CODE12 ENCLOSURE TYPEOpen/Drip Proof
Marathon Motors Premium Efficiency Motor, U270, 60HP, 1200RPM, 230/460V, 3PH, 404T FR, DP
(No reviews yet)
Write a Review
Write a Review
Marathon Motors Premium Efficiency Motor, U270, 60HP, 1200RPM, 230/460V, 3PH, 404T FR, DP
- SKU:
- SGB871531
- Condition:
- New
- Availability:
- Usually Ships in 24 Hours
- Shipping:
- Calculated at Checkout
- Warranty:
- 1 year replacement Warranty. Details
- Returns:
- 30 Days Money Back Guarantee. Details
$7,902.36
