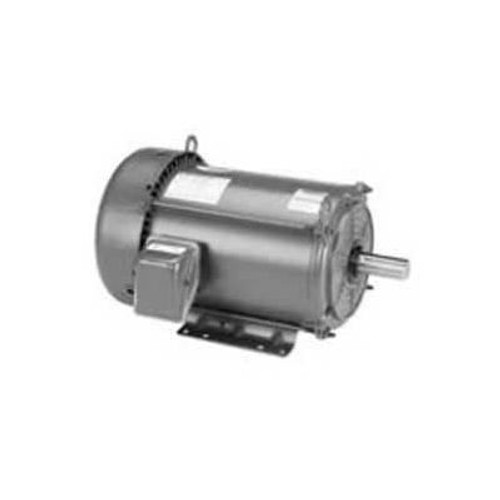

Marathon Motors Premium Efficiency Motor, E2106, 2HP, 3600RPM, 208-230/460V, 3PH, 145T FR, TEFCMarathon's XRI Premium Efficiency motors are designed to conserve energy over extended time periods. These premium efficiency designs are available in both Totally Enclosed Fan Cooled and Open Drip Proof construction. Product Specifications HORSEPOWER2 ENCLOSURETEFC FRAME145T MOUNTINGRigid NAMEPLATE RPM3600 PHASE3 MOTOR RPM 60Hz3600 VOLTAGE208-230/460 DUTYContinuous SERVICE FACTOR1.15 AMBIENT TEMP C40 WEIGHT46 ULRecognized Construction CSAY RPM RANGE3001-3600 MODEL NUMBER145TTFR13002 60 HERTZ kW1.49 BEARING-DRIVE-END6205 BEARING-OPP-DRIVE-END6203 FL EFFICIENCY85.5 INSULATION CLASSF FL AMPS5.2-4.8/2.4 50 Hertz HP2 50 Hertz kW1.49 50 HERTZ RPM3000 KVA-CODEL NEMA DESIGNB APPROVAL-CEY ASSEMBLYF1 Only DRIVE END BEARING SIZE6205 OPPOSITE END BEARING SIZE6203 STARTING TYPEAcross The Line 50 HERTZ VOLTAGE190/380 50 HERTZ FL AMPS5.8/2.9 BRANDMarathon Motors 50 Hertz SF1 MANUFACTURER PART #E2106 ORIENTATIONHorizontal is_motorYes IP CODE43 ENCLOSURE TYPETotally Enclosed
Marathon Motors Premium Efficiency Motor, E2106, 2HP, 3600RPM, 208-230/460V, 3PH, 145T FR, TEFC
(No reviews yet)
Write a Review
Write a Review
Marathon Motors Premium Efficiency Motor, E2106, 2HP, 3600RPM, 208-230/460V, 3PH, 145T FR, TEFC
- SKU:
- SGB871498
- Condition:
- New
- Availability:
- Usually Ships in 24 Hours
- Shipping:
- Calculated at Checkout
- Warranty:
- 1 year replacement Warranty. Details
- Returns:
- 30 Days Money Back Guarantee. Details
£492.19
