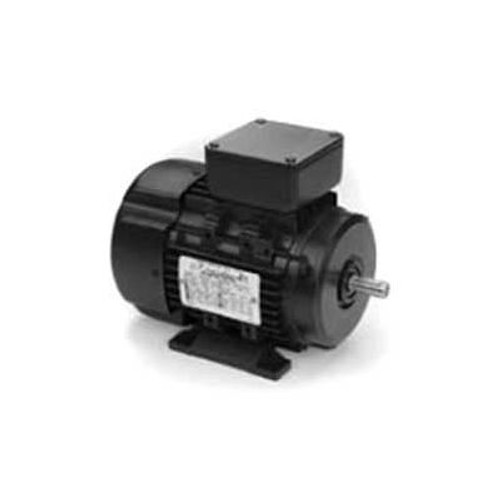

Marathon Motors Metric Motor, R313, 80T17FH5327, 1-.75HP, 1800RPM, 230/460V, 3PH, 80TZ FR, TEFCMarathon's line of Metric Dimension Motors are designed in IEC Frames from D63 through D200L. The motors are available from stock in 50 Hz or 60 Hz. This means that replacement 60 Hz motors are readily available from Marathon to replace metric motors. Product Specifications HORSEPOWER1 ENCLOSURETEFC FRAME80TZ MOUNTINGRigid NAMEPLATE RPM1800 PHASE3 MOTOR RPM 60Hz1800 VOLTAGE230/460 DUTYContinuous SERVICE FACTOR1.15 AMBIENT TEMP C40 WEIGHT29 ULRecognized Construction CSAY RPM RANGE1701-1800 MODEL NUMBER80T17FH5327 60 HERTZ kW0.75 BEARING-DRIVE-END6204 BEARING-OPP-DRIVE-END6204 FL EFFICIENCY0.8 INSULATION CLASSF FL AMPS3.2/1.6 50 Hertz HP1 50 Hertz kW0.75 50 HERTZ RPM1500 KVA-CODEJ APPROVAL-CEY NEMA DESIGNB ASSEMBLYF3 DRIVE END BEARING SIZE6204 OPPOSITE END BEARING SIZE6204 STARTING TYPELine or Inverter 50 HERTZ VOLTAGE200/400 50 HERTZ FL AMPS3.8/1.9 BRANDMarathon Motors 50 Hertz SF1.15 MANUFACTURER PART #R313 ORIENTATIONHorizontal is_motorYes IP CODE55 ENCLOSURE TYPETotally Enclosed
Marathon Motors Metric Motor, R313, 80T17Fh5327, 1-.75Hp, 1800Rpm, 230/460V, 3Ph, 80Tz Fr, Tefc
(No reviews yet)
Write a Review
Write a Review
Marathon Motors Metric Motor, R313, 80T17Fh5327, 1-.75Hp, 1800Rpm, 230/460V, 3Ph, 80Tz Fr, Tefc
- SKU:
- SGB870537
- Condition:
- New
- Availability:
- Usually Ships in 24 Hours
- Shipping:
- Calculated at Checkout
- Warranty:
- 1 year replacement Warranty. Details
- Returns:
- 30 Days Money Back Guarantee. Details
$463.24
