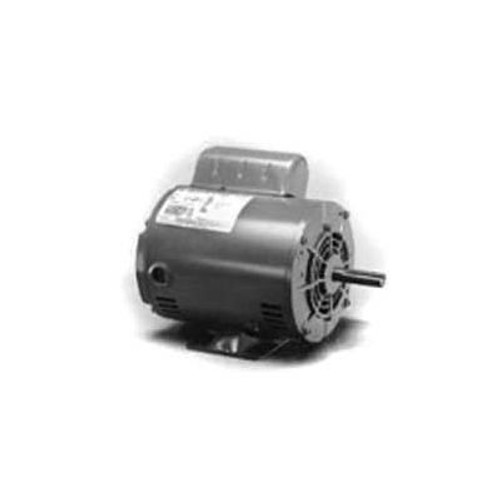

Marathon Motors, G095, 056C17D2010, 1/3Hp, 1800Rpm, 115/208-230V, 1Ph, 56 Fr, Dp

Marathon Motors, G095, 056C17D2010, 1/3HP, 1800RPM, 115/208-230V, 1PH, 56 FR, DPMarathon's Single Phase extensive line of General Purpose motors are available in ODP and TEFC construction, Foot Mounted and Footless. Horsepower sizes available from stock range from 1/12 HP through 15 HP. Product Specifications HORSEPOWER1/3 ENCLOSUREDP FRAME56 MOUNTINGRigid NAMEPLATE RPM1800 PHASE1 MOTOR RPM 60Hz1800 VOLTAGE115/208-230 DUTYContinuous SERVICE FACTOR1.35 THERMAL PROTECTIONManual Protector AMBIENT TEMP C40 ROTATIONCCW WEIGHT18 ULRecognized Construction and Protector CSAY RPM RANGE1701-1800 MODEL NUMBER056C17D2010 60 HERTZ kW0.25 BEARING-DRIVE-END6203 BEARING-OPP-DRIVE-END6203 INSULATION CLASSB FL AMPS6.4/3-3.2 KVA-CODEL ASSEMBLYF1 ONLY APPROVAL-CEN NEMA DESIGNNO DESIGN CODE DRIVE END BEARING SIZE6203 OPPOSITE END BEARING SIZE6203 BRANDMarathon Motors MANUFACTURER PART #G095 ORIENTATIONHorizontal is_motorYes IP CODE22 ENCLOSURE TYPEOpen/Drip Proof
