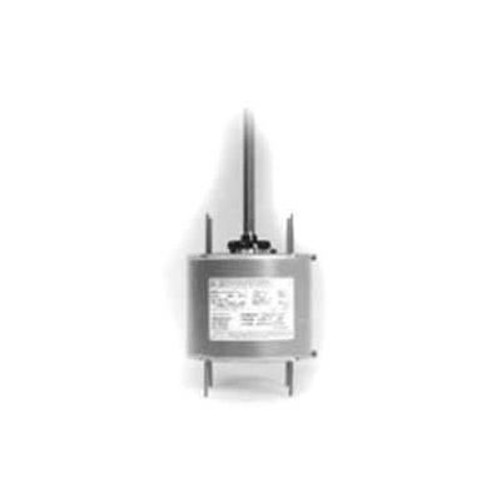

Marathon Motors Condenser Fan Motor, X462, 1HP, 1075 RPM, 460 V, 1 PH, 48Y FR, TENV

Marathon Motors Condenser Fan Motor, X462, 1HP, 1075 RPM, 460 V, 1 PH, 48Y FR, TENVDirect drive condenser fans mounted vertically, shaft up. Models with open brackets should be mounted where they are shielded from rain. These motors need to be mounted within the airflow of the fan for proper cooling. Product Specifications BRANDMarathon Motors MANUFACTURERS PART NUMBERX507 HORSEPOWER1 MOTOR RPM 60Hz1075 VOLTAGE460 PHASE1 FRAME48Y ENCLOSURE TYPETotally Enclosed HERTZ60 SPEEDS1 ROTATIONCCW/CW THERMAL PROTECTIONAutomatic (under locked rotor only) RATED RPM1075 MOUNTINGRD (Round) BEARING TYPEBall DRIVE END BEARING SIZE6203 OPPOSITE END BEARING SIZE6203 INSULATION CLASSB SERVICE FACTOR1 AMBIENT TEMP C60 DUTYContinuous AOM is_motorYes WEIGHT LBS27 RPM RANGE1001-1100 FL AMPS3.4 ASSEMBLYF1 (F2 Modification Available) ENCLOSURETENV
