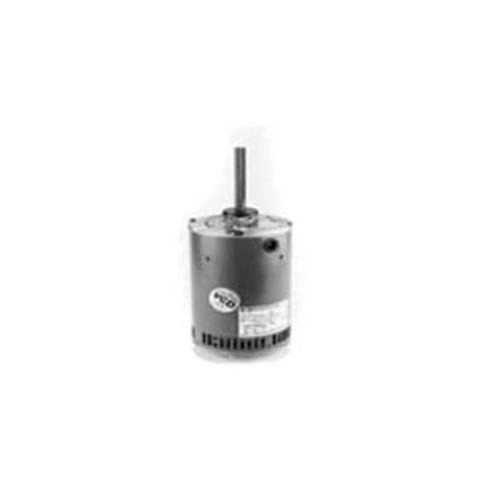

Marathon Motors Condenser Fan Motor, X432, 3/4Hp, 1075 Rpm, 208-230/460 V, 1 Ph, 56Y Fr, Opao

Marathon Motors Condenser Fan Motor, X432, 3/4HP, 1075 RPM, 208-230/460 V, 1 PH, 56Y FR, OPAODirect drive condenser fans mounted vertically, shaft up. Models with open brackets should be mounted where they are shielded from rain. These motors need to be mounted within the airflow of the fan for proper cooling. Product Specifications BRANDMarathon Motors MANUFACTURERS PART NUMBERX012 HORSEPOWER3/4 MOTOR RPM 60Hz1075 VOLTAGE208-230/460 PHASE1 FRAME56Y ENCLOSURE TYPEOpen/Drip Proof HERTZ60 SPEEDS1 ROTATIONCCW THERMAL PROTECTIONAutomatic (under locked rotor only) RATED RPM1075 MOUNTINGRigid BEARING TYPEBall DRIVE END BEARING SIZE6203 OPPOSITE END BEARING SIZE6203 INSULATION CLASSB SERVICE FACTOR1 AMBIENT TEMP C40 DUTYContinuous AOM is_motorYes WEIGHT LBS22 RPM RANGE1001-1100 OPPOSITE END BEARINGBall FL AMPS4.6-4.4/2.2 ASSEMBLYF1 Only ENCLOSUREOPAO
