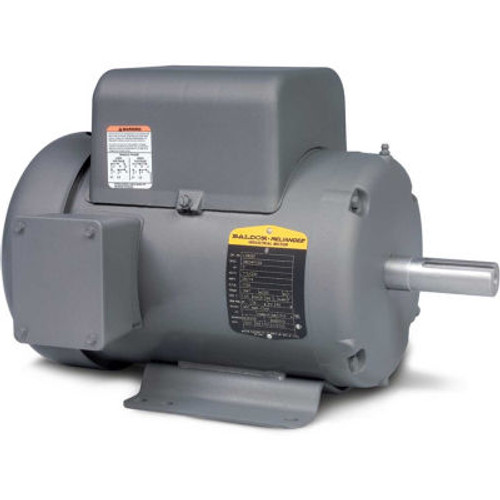

Baldor-Reliance Motor L3514T-50, 1.5HP, 1425RPM, 1PH, 50HZ, 145T, 3535LC, TEFC

Baldor-Reliance Motor, 1.5HP,1425RPM,1PH,50HZ,145T,3535LC,TEFCFeatures:Windings tied each end at every slot for rigidityBall bearingsHigh temperature insulationCopper windingsTypical Applications:Suitable for a wide variety of applications where only 50 hertz power is available. Motors are designed to be used at rated voltages with tolerance of +/- ½ 15% on voltage. Product Specifications HORSEPOWER1 1/2 ENCLOSURETEFC FRAME145T MOUNTINGRigid NAMEPLATE RPM1425 PHASE1 MOTOR RPM 50Hz1425 VOLTAGE110/220 HERTZ50 SERVICE FACTOR1.15 AMBIENT TEMP C40 WEIGHT50 RPM RANGE1401-1500 DESIGN CODEL BEARING-DRIVE-END6205 BEARING-OPP-DRIVE-END6203 FL EFFICIENCY73 INSULATION CLASSB FL AMPS16/8 KVA-CODEH 208V AMPS-- BRANDBaldor-Reliance DOE-CODE-- MANUFACTURER PART #L3514T-50 is_motorYes ENCLOSURE TYPETotally Enclosed POWER-FACTOR88 DRIVE END FLANGEStandard C-DIMENSION INCHES14.18 SERIAL-NUMBER-- POLES4 SPEC. NUMBER35EE001Y989G1
