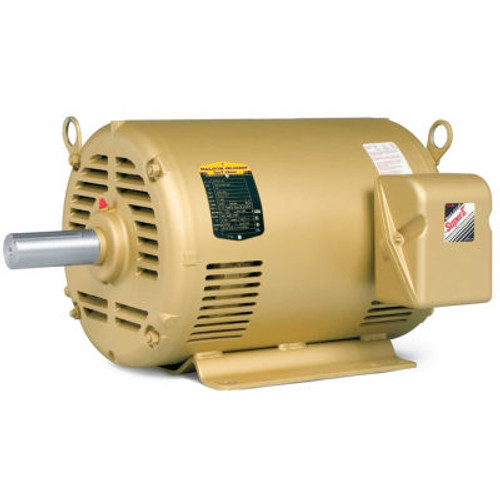

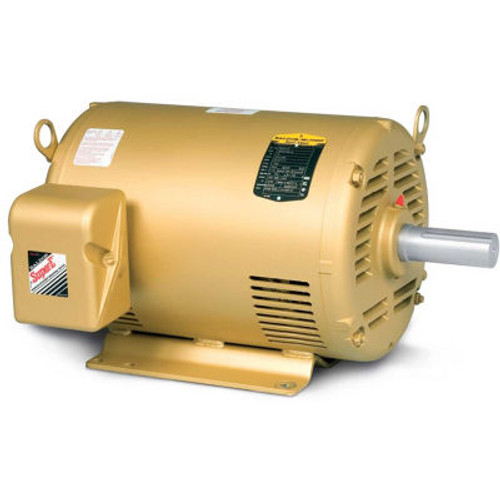

Baldor-Reliance Motor EM3211T, 3HP, 1755RPM, 3PH, 60HZ, 182T, 3634M, OPSB, F1

Baldor-Reliance Motor, 3HP,1755RPM,3PH,60HZ,182T,3634M,OPSB,F1Features:Heavy duty framesBall bearingsMoisture resistant ISR® (Inverter Spike Resistant) copper windingsLow-loss electrical lamination grade steelThree year warranty.Typical Applications:Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and 20:1 constant torque speed range with properly sized and adjusted variable frequency drives. Product Specifications HORSEPOWER3 ENCLOSUREOPSB FRAME182T MOUNTINGRigid NAMEPLATE RPM1760 PHASE3 MOTOR RPM 60Hz1760 VOLTAGE230/460 HERTZ60 SERVICE FACTOR1.15 AMBIENT TEMP C40 WEIGHT75 RPM RANGE1701-1800 DESIGN CODEB BEARING-DRIVE-END6206 BEARING-OPP-DRIVE-END6205 FL EFFICIENCY89.5 INSULATION CLASSF FL AMPS8.2/4.1 KVA-CODEJ 208V AMPS-- BRANDBaldor-Reliance DOE-CODE010A MANUFACTURER PART #EM3211T is_motorYes ENCLOSURE TYPEOpen/Drip Proof POWER-FACTOR76 DRIVE END FLANGEStandard C-DIMENSION INCHES15 SERIAL-NUMBER-- POLES4 SPEC. NUMBER36G548S269G1
