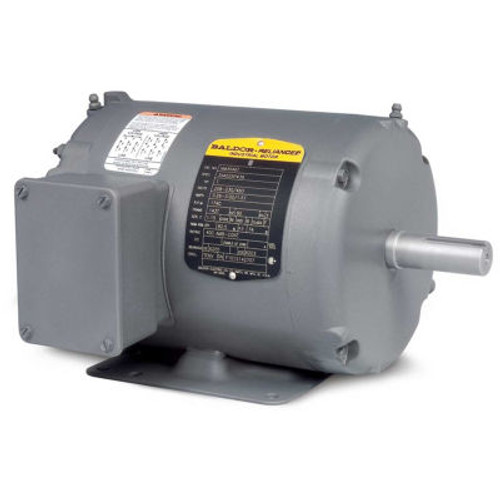

Baldor-Reliance Motor Aom3455, .25Hp, 1140Rpm, 3Ph, 60Hz, 48, 3411M, Teao, F1

Baldor-Reliance Motor, .25HP,1140RPM,3PH,60HZ,48,3411M,TEAO,F1Features:Locked drive end bearing constructionBearings sized for larger overhung loads for fan on shaft applicationsLeads 36Typical Applications:Motors are designed for In the Airstream and fan on shaft applications. Product Specifications BRANDBaldor-Reliance MANUFACTURERS PART NUMBERAOM3455 HORSEPOWER1/4 MOTOR RPM 60Hz1140 VOLTAGE230/460 PHASE3 FRAME48 ENCLOSURE TYPETotally Enclosed HERTZ60 SPEEDS1 ROTATIONCCW/CW THERMAL PROTECTIONNone RATED RPM1140 MOUNTINGRigid FULL LOAD AMPS1.5/1.4/0.7 SHAFT DIAMETER0.5 BEARING TYPEBall DRIVE END BEARING SIZE6203 OPPOSITE END BEARING SIZE6203 INSULATION CLASSF SERVICE FACTOR1 AMBIENT TEMP C40 LENGTH LESS SHAFT INCHES14 DUTYContinuous APPROVALS OR CERTIFICATIONSCSA; UR OVERALL LENGTH9.63 is_motorYes LENGTH INCHES14 WIDTH INCHES11.125 HEIGHT INCHES11.125 WEIGHT LBS19 RPM RANGE1101-1200 SHAFT DIAMETER INCHES0.5 SHAFT LENGTH INCHES0.5 FL EFFICIENCY68 DESIGN CODEB OPPOSITE END BEARING6203 FL AMPS1.4/.7 POLES6 FRAME SIZE48 DRIVE END FLANGEStandard ENCLOSURETEAO
