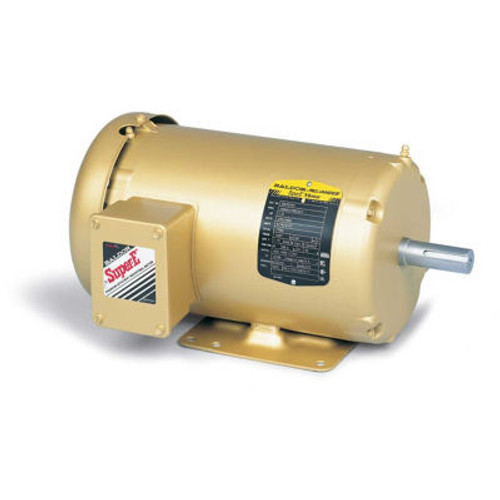

Baldor-Reliance HVAC Motor, EM3611T-G, 3 PH, 3 HP, 208-230/460 V, 1760 RPM, TEFC, 182T Frame

Baldor-Reliance HVAC Motor, EM3611T-G, 3 PH, 3 HP, 208-230/460 V, 1760 RPM, TEFC, 182T FrameBaldor-Reliance's line of Heating, Ventilation, and Air Conditioning Motors are designed with dynamically balanced rotors for reduced vibration and quiet operation. The motors range in size from 1/4 HP to 100 HP and include heavy duty industrial designs as well as designs for commercial applications. These applications include ventilators, direct drive and belted fans, exhaust fans, unit heaters, air conditioning units, and commercial refrigeration condensers. Also included are motors designed especially for use with variable torque electronic controls that are used to conserve electricity.FeaturesClass H insulated with AEGIS shaft grounding ring installed internallyRegreasable ball bearingsDynamically balanced rotors for reduced vibration and quiet operationSuitable for mounting in any positionMeet or exceed NEMA Premium efficienciesInverter Ready3 year warrantyApplication(s)Heating, ventilation and air conditioning blower and fan motors, pump motors, and other general purpose applications using an adjustable speed drive. Product Specifications BRANDBaldor-Reliance MANUFACTURERS PART NUMBEREM3611T-G HORSEPOWER3 MOTOR RPM 60Hz1760 VOLTAGE208-230/460 PHASE3 FRAME182T ENCLOSURE TYPETotally Enclosed HERTZ60 SPEEDS1 ROTATIONCCW/CW THERMAL PROTECTIONNone RATED RPM1760 MOUNTINGRigid FULL LOAD AMPS9.0/8.4/4.2 SHAFT DIAMETER1.125 BEARING TYPEBall DRIVE END BEARING SIZE6206 OPPOSITE END BEARING SIZE6205 INSULATION CLASSH SERVICE FACTOR1.15 AMBIENT TEMP C40 LENGTH LESS SHAFT INCHES19 DUTYContinuous APPROVALS OR CERTIFICATIONSCSA; CSA EEV; UR OVERALL LENGTH16.54 is_motorYes LENGTH INCHES21.5 WIDTH INCHES16 HEIGHT INCHES14.625 WEIGHT LBS53 RPM RANGE1701-1800 SHAFT DIAMETER INCHES0.875 FL EFFICIENCY89.5 DESIGN CODEB OPPOSITE END BEARING6205 FL AMPS9-8.4/4.2 FRAME SIZE145T
