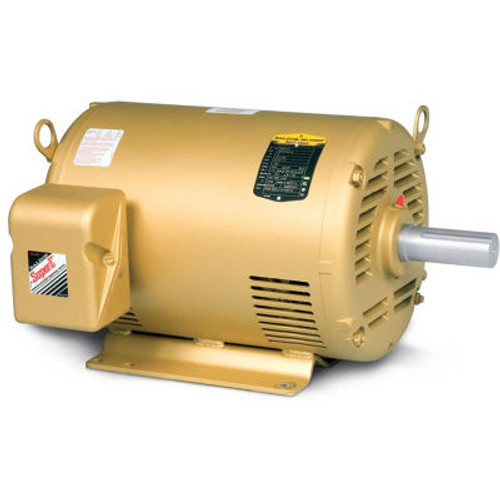

Baldor-Reliance General Purpose Motor, 208-230/460 V, 3 HP, 3450 RPM, 3 PH, 145TC, OPSB

Baldor-Reliance General Purpose Motor, 208-230/460 V, 3 HP, 3450 RPM, 3 PH, 145TC, OPSBBaldor-Reliance's extensive line of General Purpose motors are available in Open Drip-proof and TEFC construction in both single and three phase. Horsepower sizes available from stock range from 1/12 HP through 1500 HP. Designed for General purpose use means that these motors can be used in applications which include compressors, pumps, fans, conveyors, material handling, machine tools and many others.FeaturesPressure cast aluminum end plates with ribbed design for rigidityBall bearingsLocked drive end bearingHeavy gauge steel frameSuper-E motors have NEMA Premium efficiency3 year warrantyApplication(s)Pumps, fans, conveyors, machine tool, gear reducers. Product Specifications HORSEPOWER3 ENCLOSUREOPSB FRAME145TC MOUNTINGC-Face Rigid NAMEPLATE RPM3450 PHASE3 MOTOR RPM 60Hz3450 VOLTAGE208-230/460 HERTZ60 DUTYContinuous SERVICE FACTOR1.15 AMBIENT TEMP C40 RPM RANGE3001-3600 DESIGN CODEB BEARING-DRIVE-END6205 BEARING-OPP-DRIVE-END6203 FL EFFICIENCY85.5 INSULATION CLASSF FL AMPS8-7.6/3.8 KVA-CODEK 208V AMPS-- BRANDBaldor-Reliance MANUFACTURER PART #CEM3158T is_motorYes ENCLOSURE TYPEOpen/Drip Proof BALDOR CATALOG NUMBERCEM3158T POWER-FACTOR87 C-DIMENSION INCHES13 TYPEGeneral Purpose Motor SPEC. NUMBER35TT865P988G1
