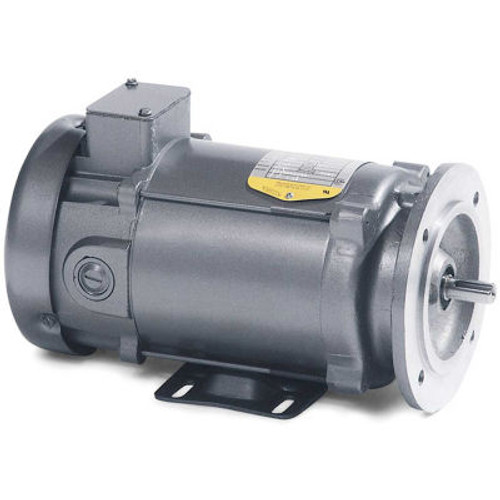

Baldor-Reliance Dc Washdown Motor, Cdpwd3455, 1 Hp, 1750 Rpm, Tefc, 56C Frame

Baldor-Reliance DC Washdown Motor, CDPWD3455, 1 HP, 1750 RPM, TEFC, 56C FramePermanent magnet DC motors are available with a choice for standard painted or paint-free finishes. PMDC motors may be used for adjustable speed applications such as conveyors or packing equipment. They may be paired with our BCWD140 Washdown DC SCR control.FeaturesMoisture sealant on blot heads between frame and endplatesNeoprene gasketed conduit boxDouble sealed ball bearingsForsheda® running contact v-ring slingerStainless steel shaftElectrostatic epoxy paint coatingClass F insulationTach adaptable3300P motors are TENV, all others are TEFCApplication(s)Food processing conveyors and feeders where the motor is exposed to high pressure wash down.Product Specifications HORSEPOWER1 ENCLOSURETEFC FRAME56C BRANDBaldor-Reliance MOUNTINGC-Face Rigid MOTOR RPM 60Hz1750 RPM1750 VOLTAGE180 AMBIENT TEMP C40 ENCLOSURE TYPETotally Enclosed OPPOSITE END BEARING6203 BASERG MANUFACTURERS PART NUMBERCDPWD3455 RPM RANGE1701-1800 FULL LOAD AMPS - ARMATURE5 DRIVE END BEARING SIZE6203 BALDOR CATALOG NUMBERCDPWD3455 SPECIFICATION NUMBER34-6418-3865 TYPEDC Washdown Motor ARMATURE VOLTAGE180 INSULATION CLASSF
