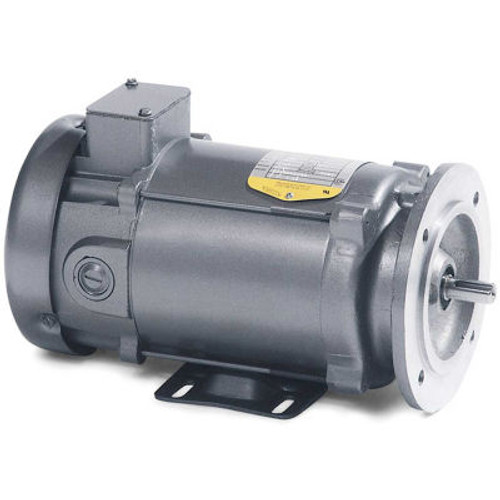

Baldor-Reliance DC Metric Motor, VP3436D, 0.75 HP, 1750 RPM, TEFC, D80D Frame

(No reviews yet) Write a Review
SKU:
SGB910312
Condition:
New
Availability:
Usually Ships in 24 Hours
Shipping:
Calculated at Checkout
Warranty:
1 year replacement Warranty. Details
Returns:
30 Days Money Back Guarantee. Details
$1,330.02

SPW Industrial BBB Business Review
Adding to cart… The item has been added
Baldor-Reliance DC Metric Motor, VP3436D, 0.75 HP, 1750 RPM, TEFC, D80D FramePermanent Magnet DC Motors are available with a choice of IEC B5 flanges in .2 to 5 HP or B14 C-faces in .2 to 2 HP. All are designed for 180 volt input power with a 20:1 constant torque speed range. These metric frames are designed for replacement on equipment requiring an IEC interface with the gearbox.FeaturesMetric Flange or C-Face per IEC StandardsBolt on non-metric baseClass F insulationTach adaptable except type 135S20:1 constant torque speed rangeType 135S and 3300P motors are TENV, all others are TEFCApplication(s)SCR Drive Motors for replacement on machinery requiring metirc mounting dimensions. Product Specifications HORSEPOWER3/4 ENCLOSURETEFC FRAMED80D MOUNTINGFF-Flange Rigid NAMEPLATE RPM1750 MOTOR RPM 60Hz1750 VOLTAGE180 AMBIENT TEMP C40 OPPOSITE END BEARING6203 RPM RANGE1701-1800 INSULATION CLASSF ENCLOSURE TYPETotally Enclosed FIELD VOLTAGE180 BALDOR CATALOG NUMBERVP3436D FULL LOAD AMPS - ARMATURE3.7 ARMATURE VOLTAGE180 SPECIFICATION NUMBER34-6483-3946 DRIVE END BEARING SIZE6206 BRANDBaldor-Reliance MANUFACTURER PART #VP3436D is_motorYes
