Brand: Aiteme
Features:

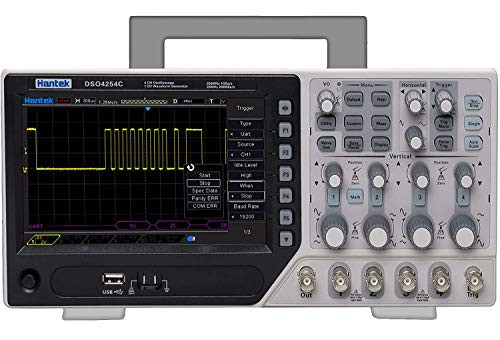

- 4CH oscilloscope,with 1CH Arbitary/function waveform generator,independent keys of oscilloscope and waveform generator which is easy to operate at the same time.(You can download manual at hantek.com.cn)
- 250MHz bandwidth, minimum measurement range 500??V /div,1GS/s sample rate,advanced digital trigger system,high trigger sensitivity.
- The high-resolution 7-inch color LCD screen (800x480 pixels),provides more than 14 trigger functions: edge, overtime, pulse, pattern, interval, etc.
- Function/arbitrary signal generator25MHz,12BitS resolution, 200MHz DDS, ARB/square wave/sine wave/triangular wave/trapezoidal wave/impulse wave/DC etc.,easy to simulate the sensor.
- Note:Before use,please read the instructions enclosed with the product.
Details: Key features: 1:4CHoscilloscope EXT AFG DVM auto range function 2:250MHz bandwidth??îminimum range 500??V /div,1GS/s sample rate. 3:Over 32 types of auto measurement function. 4:Advanced digital trigger system,high trigger sensitivity. 5:Over 14 types of trigger function: edge,overtime,pulse,pattern, interval, etc. 6:Serial bus triggering and decode,Bus protocol information can be quickly and intuitively displayed in table form. 7:Function/arbitrary signal generator25MHz,12BitS resolution,200MHz DDS, ARB/square wave/sine wave/triangular wave/trapezoidal wave/impulse wave/DC etc.,easy to simulate the sensor. 8:Integrated USB Host/Device,convenient to communicate with PC.Support U-stick storage/systerm update. 9:Support a variety of SCPI remote control command. 10:Support optional RS232 port,LAN port. (Optional). 11:Stable and reliable quality,sturdy and durable. Specifications: 1: Model: DS04254C 2: Bandwidth: 250 MHz 3: Sample rate range: 1 GS / s 4: Output voltage, typical: Over 2Vpp with ?ëÑ1M?? load 5: Frequency, typical: 1kHz 6: Supply voltage: 100-120VACRMS (?? 10%), 45Hz to 440Hz, CATII.120-240VACRMS (?? 10%), 45Hz to 66Hz, CATII. 7: Power consumption:<30W 8: Operating temperature: 0-50 ?äâ (32-122 ?äë) 9: Storage temperature: -40 ~ + 71 ?äâ (-40 ~ 159.8 ?äë) 10: Mechanical shock operation: Arbitrary waveform generator mode 11: Waveform Frequency Sine: 0.1HZ-25MHZ Square: 0.1 Hz ~ 10 MHz Ramp: 0.1HZ-1MHZ EXP: 0.1 Hz - 5 MHz 12: DAC: 2K ~ 200MHz adjustable 13: Channel: 1CH waveform output 14: Waveform Depth: 4KSa 15: Record Length:Maximum 64K samples per single-channel; Maximum 32K samples per dual-channel (4K, 32K optional) Package Included: 1 x DSO4254C Oscilloscope 4 x Probe 1 x USB cable 1 x Power cable 1 x CD
