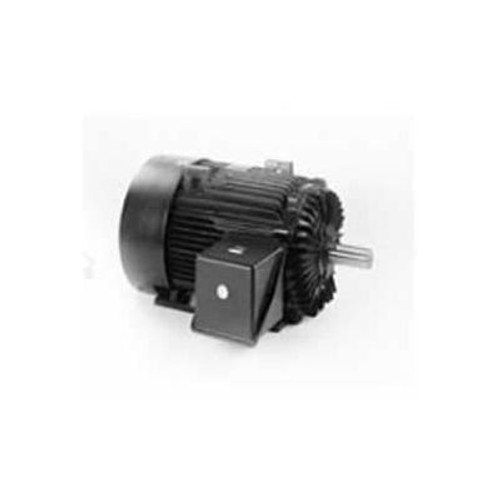

Marathon Motors Severe Duty Motor, E645, 405Ttfs6586, 75Hp, 460V, 1200Rpm, 3Ph, 405T Fr, Tefc

Marathon Motors Severe Duty Motor, E645, 405TTFS6586, 75HP, 460V, 1200RPM, 3PH, 405T FR, TEFCMarathon's Severe Duty motors are available from 1 HP to 500 HP. These products are especially designed for those applications requiring protection of the motors from severe environmental operating conditions.Product Specifications HORSEPOWER75 ENCLOSURETEFC FRAME405T BRANDMarathon Motors MOUNTINGRigid MOTOR RPM 60Hz1200 RPM1200 PHASE3 VOLTAGE460 SERVICE FACTOR1.15 AMBIENT TEMP C40 ENCLOSURE TYPETotally Enclosed OPPOSITE END BEARING6313 WEIGHT1280 ULRecognized Construction CSAY DUTYContinuous MANUFACTURERS PART NUMBERE645 RPM RANGE1101-1200 MODEL NUMBER405TTFS6586 60 HERTZ RPMS1200 60 HERTZ kW56 is_motorYes KVA-CODEG FL EFFICIENCY94.5 CEY NEMA DESIGNB STARTING TYPELine or Inverter IP CODE54 ORIENTATIONHorizontal BEARING-DRIVE-END6316 ASSEMBLYF1 (F2 Modification Available) DRIVE END BEARING SIZE6316 OPPOSITE END BEARING SIZE6313 FL AMPS90 INVERTER SPEED RANGEConstant 2:1 HAZARDOUS LOCATIONDIVISION 2 T2B INSULATION CLASSF
