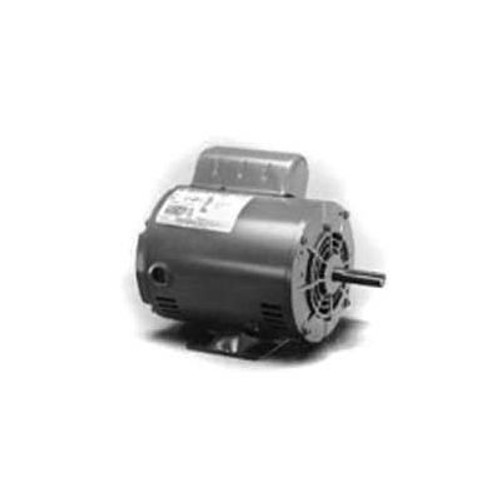

Marathon Motors, S022, 056S17D2046, 1/2HP, 1800RPM, 115V, 1PH, 56 FR, DP

Marathon Motors, S022, 056S17D2046, 1/2HP, 1800RPM, 115V, 1PH, 56 FR, DPMarathon's Single Phase extensive line of Special Purpose motors are available in ODP construction and Foot Mounted. Horsepower sizes available from stock range from 1/4 HP through 5 HP. Product Specifications HORSEPOWER1/2 ENCLOSUREDP FRAME56 MOUNTINGRigid NAMEPLATE RPM1800 PHASE1 MOTOR RPM 60Hz1800 VOLTAGE115 DUTYContinuous SERVICE FACTOR1 AMBIENT TEMP C40 ROTATIONCCW WEIGHT17 ULRecognized Construction CSAY RPM RANGE1701-1800 MODEL NUMBER056S17D2046 BEARING-DRIVE-END6203 60 HERTZ kW0.37 BEARING-OPP-DRIVE-END6203 INSULATION CLASSB FL AMPS9.20 KVA-CODEN ASSEMBLYF1 ONLY APPROVAL-CEN NEMA DESIGNNO DESIGN CODE DRIVE END BEARING SIZE6203 OPPOSITE END BEARING SIZE6203 STARTING TYPECap Start Ind Run BRANDMarathon Motors MANUFACTURER PART #S022 ORIENTATIONHorizontal is_motorYes IP CODE22 ENCLOSURE TYPEOpen/Drip Proof
