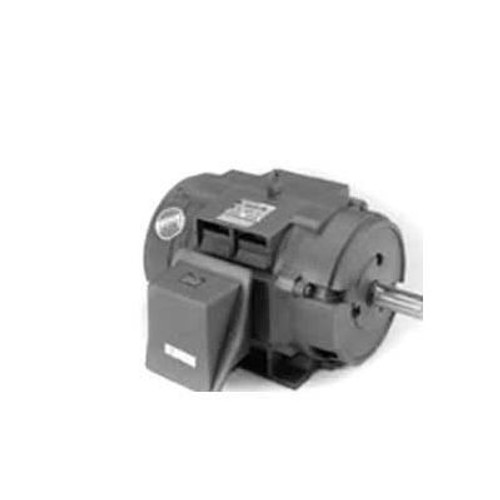

Marathon Motors Premium Efficiency Motor, U251, 150HP, 3600RPM, 460V, 3PH, 405TS FR, DPMarathon's XRI Premium Efficiency motors are designed to conserve energy over extended time periods. These premium efficiency designs are available in both Totally Enclosed Fan Cooled and Open Drip Proof construction. Product Specifications HORSEPOWER150 ENCLOSUREDP FRAME405TS MOUNTINGRigid NAMEPLATE RPM3600 PHASE3 MOTOR RPM 60Hz3600 VOLTAGE460 DUTYContinuous SERVICE FACTOR1.15 AMBIENT TEMP C40 WEIGHT1035 ULRecognized Construction CSAY RPM RANGE3001-3600 MODEL NUMBER405TSTDS6007 60 HERTZ kW112 BEARING-DRIVE-END6313 BEARING-OPP-DRIVE-END6313 FL EFFICIENCY95 INSULATION CLASSF FL AMPS165 50 Hertz HP150 50 Hertz kW112 50 HERTZ RPM3000 KVA-CODEF 50 Hertz FL eFF93.60 Percent NEMA DESIGNB APPROVAL-CEY ASSEMBLYF1 (F2 Modification Available) DRIVE END BEARING SIZE6313 OPPOSITE END BEARING SIZE6313 STARTING TYPEPWS YDRUN 50 HERTZ VOLTAGE380 50 HERTZ FL AMPS202 BRANDMarathon Motors 50 Hertz SF1.15 MANUFACTURER PART #U251 ORIENTATIONHorizontal is_motorYes IP CODE12 ENCLOSURE TYPEOpen/Drip Proof
Marathon Motors Premium Efficiency Motor, U251, 150HP, 3600RPM, 460V, 3PH, 405TS FR, DP
(No reviews yet)
Write a Review
Write a Review
Marathon Motors Premium Efficiency Motor, U251, 150HP, 3600RPM, 460V, 3PH, 405TS FR, DP
- SKU:
- SGB871492
- Condition:
- New
- Availability:
- Usually Ships in 24 Hours
- Shipping:
- Calculated at Checkout
- Warranty:
- 1 year replacement Warranty. Details
- Returns:
- 30 Days Money Back Guarantee. Details
$10,405.26
