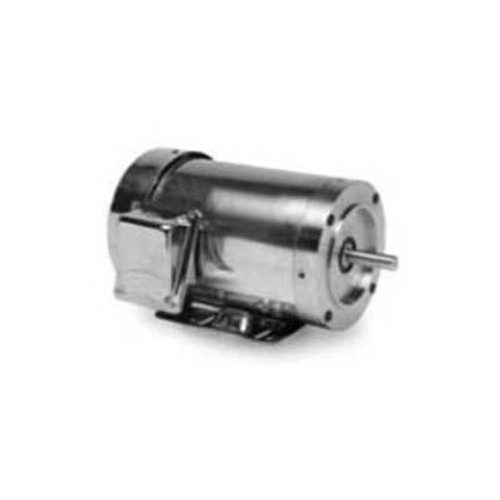

Marathon Motors Powerwash™ Washdown Motor, N601, 1Hp, 208-230/460V, 3600Rpm, 3Ph, Tenv

Marathon Motors PowerWash„¢ Washdown Motor, N601, 1HP, 208-230/460V, 3600RPM, 3PH, TENVMarathon's Three Phase line of washdown duty motors are available in totally enclosed fan cooled, Foot Mounted and C-Face. Stock ratings are available from 1/2 horsepower through 7 1/2 horsepower.Product Specifications HORSEPOWER1 ENCLOSURETENV FRAME56C BRANDMarathon Motors MOUNTINGC-Face Rigid MOTOR RPM 60Hz3600 RPM3600 PHASE3 VOLTAGE208-230/460 HERTZ60 SERVICE FACTOR1.15 AMBIENT TEMP C40 ENCLOSURE TYPETotally Enclosed OPPOSITE END BEARING6203 WEIGHT35 ULRecognized Construction CSAY DUTYContinuous MANUFACTURERS PART NUMBERN601 RPM RANGE3001-3600 MODEL NUMBER56T34V5307 60 HERTZ kW0.75 KVA-CODEL is_motorYes FL EFFICIENCY85.5 CATALOG NUMBERN601 CEN NEMA DESIGNB STARTING TYPEAcross the Line IP CODE55 ORIENTATIONHorizontal BEARING-DRIVE-ENDBall ASSEMBLYF1 Only DRIVE END BEARING SIZE6205 OPPOSITE END BEARING SIZE6203 FL AMPS2.8-2.6/1.3 INSULATION CLASSF
