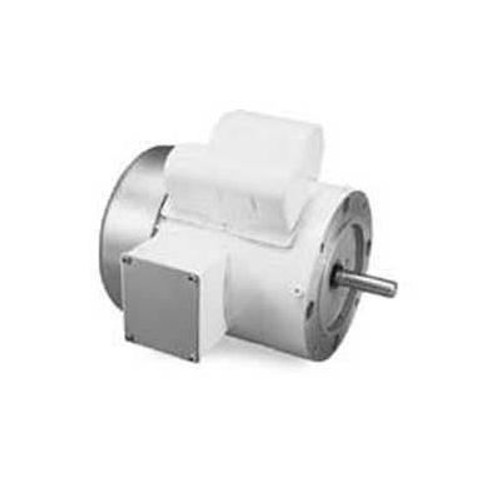

Marathon Motors Powerwash™ Washdown Motor, N437, 2Hp, 208-230/460V, 1800Rpm, 3Ph, Tefc

Marathon Motors PowerWash„¢ Washdown Motor, N437, 2HP, 208-230/460V, 1800RPM, 3PH, TEFCMarathon's Washdown Duty Motors are available from stock in single and three phase AC and in DC designs. Horsepowers range from 1/2 to 20. Designs include motors having an electrostatically applied epoxy finish, paint free with major components in 300 series.Product Specifications HORSEPOWER2 ENCLOSURETEFC FRAME56C BRANDMarathon Motors MOUNTINGC-Face Footless MOTOR RPM 60Hz1800 RPM1800 PHASE3 VOLTAGE208-230/460 HERTZ60/50 SERVICE FACTOR1.15 AMBIENT TEMP C40 ENCLOSURE TYPETotally Enclosed OPPOSITE END BEARING6205 WEIGHT49 ULRecognized Construction CSAY DUTYContinuous MANUFACTURERS PART NUMBERN437 RPM RANGE1701-1800 MODEL NUMBER56T17WD5332 60 HERTZ kW1.49 is_motorYes KVA-CODEK 50 Hertz Voltage190/380 50 Hertz FL Amps5.2/2.6 FL EFFICIENCY84 50 Hertz SF1.15 CATALOG NUMBERN437 50 Hertz HP1 1/2 50 Hertz kW1.10 50 Hertz RPM1500 CEY NEMA DESIGNB STARTING TYPEAcross the Line IP CODE55 ORIENTATIONHorizontal BEARING-DRIVE-ENDBall ASSEMBLYF1 Only DRIVE END BEARING SIZE6205 OPPOSITE END BEARING SIZE6205 FL AMPS6.2-5.8/2.9 INSULATION CLASSF
