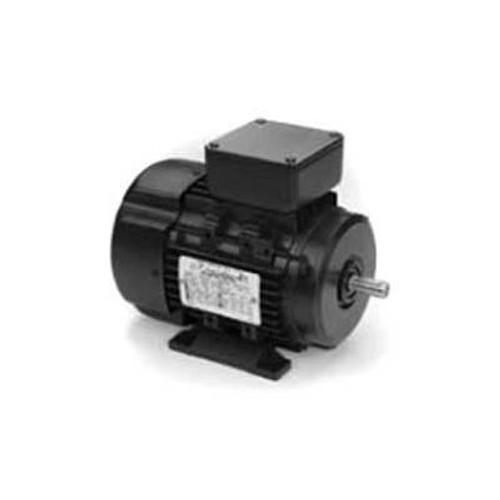

Marathon Motors Metric Motor, R319A, 90LT17FH6326, 2-1.5HP, 1800RPM, 230/460V, 3PH, 90L FR, TEFC

Marathon Motors Metric Motor, R319A, 90LT17FH6326, 2-1.5HP, 1800RPM, 230/460V, 3PH, 90L FR, TEFCMarathon's line of Metric Dimension Motors are designed in IEC Frames from D63 through D200L. The motors are available from stock in 50 Hz or 60 Hz. This means that replacement 60 Hz motors are readily available from Marathon to replace metric motors. Product Specifications HORSEPOWER2 ENCLOSURETEFC FRAME90L MOUNTINGRigid NAMEPLATE RPM1800 PHASE3 MOTOR RPM 60Hz1800 MOTOR RPM 50Hz1500 VOLTAGE230/460 HERTZ60/50 DUTYContinuous SERVICE FACTOR1.15 AMBIENT TEMP C40 WEIGHT43.8 ULRecognized Construction CSAY RPM RANGE1701-1800 MODEL NUMBER090LT17FH6326 60 HERTZ kW1.49 BEARING-DRIVE-END6205 BEARING-OPP-DRIVE-END6205 FL EFFICIENCY87.5 INSULATION CLASSF FL AMPS5.4/2.7 50 Hertz HP2 50 Hertz kW1.49 50 HERTZ RPM1500 KVA-CODEK 50 Hertz FL eFF85.5 APPROVAL-CEY ASSEMBLYF3 NEMA DESIGNB DRIVE END BEARING SIZE6205 OPPOSITE END BEARING SIZE6205 STARTING TYPELine or Inverter 50 HERTZ VOLTAGE200/400 50 HERTZ FL AMPS6.4/3.2 BRANDMarathon Motors MANUFACTURER PART #R319A 50 Hertz SF1.15 ORIENTATIONHorizontal is_motorYes IP CODE55 ENCLOSURE TYPETotally Enclosed
