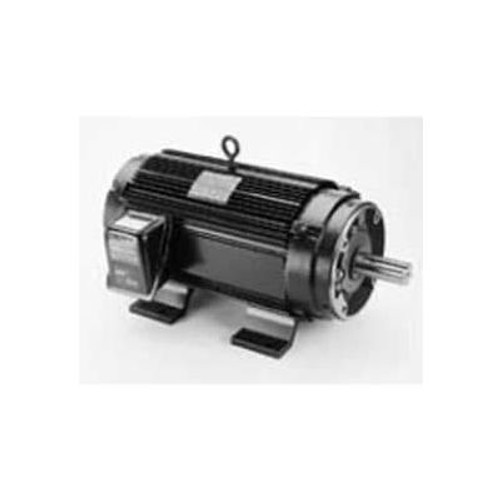

Marathon Motors Inverter Duty Motor, Y543, 184Thtl7726, 5Hp, 230/460V, 1800Rpm, 3Ph, 184Tc, Tenv

Marathon Motors Inverter Duty Motor, Y543, 184THTL7726, 5HP, 230/460V, 1800RPM, 3PH, 184TC, TENVDesigned for inverter or vector applications where up to a 1000:1 constant Torque speed range is required. Typical use includes: material handling, machine tools, conveyors, crane and hoist, pumps, and other industrial machinery installed in dusty or dirty environments.Product Specifications HORSEPOWER5 ENCLOSURETENV FRAME184TC BRANDMarathon Motors MOUNTINGC-Face Rigid MOTOR RPM 60Hz1800 RPM1800 PHASE3 VOLTAGE230/460 THERMAL PROTECTIONThermostats (Normally Closed) AMBIENT TEMP C40 ENCLOSURE TYPETotally Enclosed OPPOSITE END BEARINGBall ULRecognized Construction and Protector CSAY CATALOG NO.Y543 DUTYContinuous MANUFACTURERS PART NUMBERY543 RPM RANGE1701-1800 MODEL NUMBER184THTL7726 60 HERTZ kW3.7 60 HERTZ FL AMPS14/7 60 HERTZ SF1 WEIGHT IN LBS.110 is_motorYes KVA-CODEN 60 HERTZ FL Eff89.50 Percent CEY NEMA DESIGNA STARTING TYPEInverter Only IP CODE43 ORIENTATIONHorizontal BEARING-DRIVE-ENDBall ASSEMBLYF1 (F2 Modification Available) DRIVE END BEARING SIZE6207 OPPOSITE END BEARING SIZE6206 INVERTER SPEED RANGEConstant 1000:1 INSULATION CLASSF
