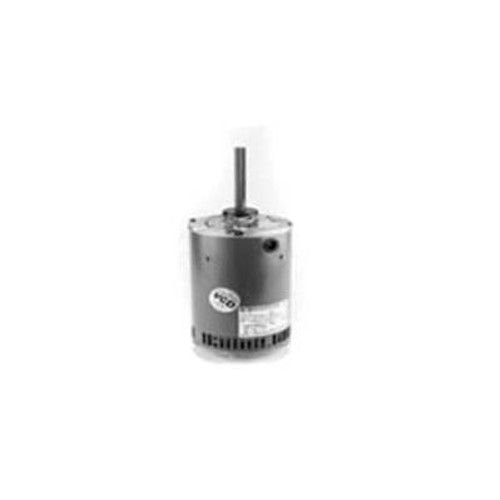

Marathon Motors Condenser Fan Motor, X502, 1Hp, 1200 Rpm, 200-230/460 V, 3 Ph, 56Y Fr, Opao

Marathon Motors Condenser Fan Motor, X502, 1HP, 1200 RPM, 200-230/460 V, 3 PH, 56Y FR, OPAODirect drive condenser fans mounted vertically, shaft up. Models with open brackets should be mounted where they are shielded from rain. These motors need to be mounted within the airflow of the fan for proper cooling. Product Specifications BRANDMarathon Motors MANUFACTURERS PART NUMBERX015 HORSEPOWER1 MOTOR RPM 60Hz1200 VOLTAGE200-230/460 PHASE3 FRAME56Y ENCLOSURE TYPEOpen/Drip Proof HERTZ60 SPEEDS1 ROTATIONCCW/CW THERMAL PROTECTIONAutomatic (under locked rotor only) RATED RPM1200 MOUNTINGRound Belly Band BEARING TYPEBall DRIVE END BEARING SIZE6203 OPPOSITE END BEARING SIZE6203 INSULATION CLASSH SERVICE FACTOR1 AMBIENT TEMP C70 DUTYContinuous AOM is_motorYes WEIGHT LBS28 RPM RANGE1101-1200 OPPOSITE END BEARINGBall FL AMPS4.0-4.2/2.1 ASSEMBLYF1 Only ENCLOSUREOPAO
