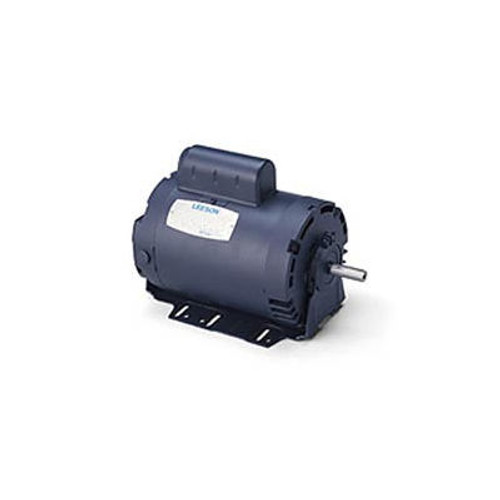

Leeson Motors-1/2Hp, /277V, 1725Rpm, Dp, Resilient Base Mount, 1.25 Sf, 62 Eff.

General Purpose, Capacitor Start-Inductor Run Motor: 1/2HP, 1725 RPM, Drip-Proof (DP) Enclosure, 48 Frame, Resilient Base Mount, /277V, 1PH, 60HZ, Name Plate Amps 3.7, Continuous duty, 1.25 Service Factor, Automatic thermal protection, Efficiency: 62, Efficiency Type: Standard, Ambient 40 C, Selective CCW Rotation, Shaft Length 1-1/2, Shaft Diameter 5/8.Drip proof (DP)enclosure has vents in end shield and/or frame to prevent drops of liquid from falling into motor within a 15 degree angle from vertical. Designed for use in areas that are reasonably dry, clean, and well ventilated (usually indoors). If installed outdoors, it is recommended that the motor be protected with a cover that does not restrict the flow of air to the motor. Product Specifications BRANDLeeson MANUFACTURERS PART NUMBER102965.00 HORSEPOWER1/2 MOTOR RPM 60Hz1800 VOLTAGE277 PHASE1 FRAMES56 HERTZ60 RATED RPM1800 MOUNTINGResilient Base AMBIENT TEMP C40 is_motorYes LENGTH INCHES10.81 WIDTH INCHES6.39 HEIGHT INCHES8.52 FL AMPS3.7 ENCLOSUREDP
