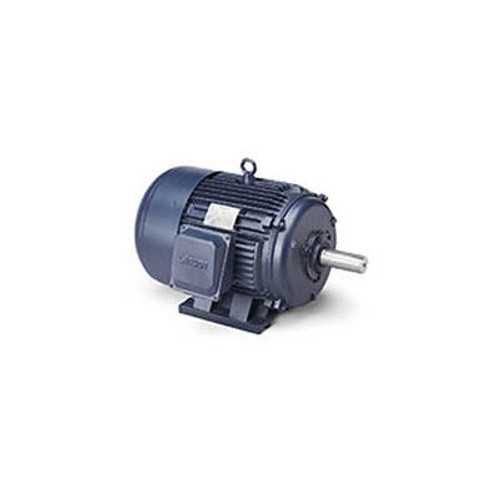

Leeson 171575.60, Premium Eff., 5 HP, 1180 RPM, 208-230/460V, 215T, DP, Rigid

General Purpose, 3-Phase Motor: 5/3HP, 1180/985 RPM, Drip-Proof (DP) Enclosure, 215 Frame, Rigid Mount, 208-230/460V, 3PH, 60/50HZ, Name Plate Amps 15.7-15/7.5&12.4/6.2, Continuous duty, 1.25 Service Factor, No thermal protection, Efficiency: 90.2, Efficiency Type: NEMA Premium, Ambient 40 C, Reverse Rotation, Shaft Length 3", Shaft Diameter 1.375".Drip proof (DP)enclosure has vents in end shield and/or frame to prevent drops of liquid from falling into motor within a 15 degree angle from vertical. Designed for use in areas that are reasonably dry, clean, and well ventilated (usually indoors). If installed outdoors, it is recommended that the motor be protected with a cover that does not restrict the flow of air to the motor.Rigid base allows motor to be rigidly mounted on equipment.Click here to see our full selection of Motor Controls and Drives.CompatibilityBaldor: EM3309T(Leeson motor has cast iron frame ) | EM3309T(Leeson motor has cast iron frame ) GE: E8012Grainger/Dayton: 3N925 | 5N310(Leeson motor has cast iron frame ) Product Specifications HORSEPOWER5 ENCLOSUREDP FRAME215T MOUNTINGRigid NAMEPLATE RPM1180 PHASE3 MOTOR RPM 60Hz1180 VOLTAGE208-230/460 HERTZ60/50 DUTYContinuous SERVICE FACTOR1.25 THERMAL PROTECTIONNo EFFICIENCY TYPENEMA Premium EFFICIENCY90.2 AMBIENT TEMP C40 SHAFT DIAMETER1.375 SHAFT LENGTH3 ROTATIONCCW/CW WEIGHT188 ULY CSAY LEESON MODEL NO.C215T11DB6AA UPC69172032660 RPM RANGE1101-1200 COMPATIBLE WITH/REPLACES - 1Baldor EM3309T, WEG 00512OT3E215T, Marathon U269 BEARING-DRIVE-END6308 COMPATIBLE WITH/REPLACES - 3Grainger/Dayton, 3N925, 5N310 COMPATIBLE WITH/REPLACES - 2GE, E8012 FL AMPS15.7-15/7.5 BRANDLeeson MANUFACTURER PART #171575.60 is_motorYes DESIGNSq Cage Inductor Run ENCLOSURE TYPEOpen/Drip Proof FRAME MATERIALCast Iron
