5. Sharing Load, Equalized-current imbalance ≤ 3%
6. Optional Ethernet interface through SNMP and/or TCP/IP
7. Controller MCU
8. Digital signal collection via internal RS485 bus; RS232 interface for remote operation
9. 2U height, light weight, High power density.
10, power factor 0.9999
11,48VDC output, output current:10A/20A/30A/50A/100A/150A/200A/250A/300A
12,Work temperature: -25℃ ~ 65℃
13, Hot swappable,N +1 redundant power supply
14, Complete fault protection, alarm function
Product Description

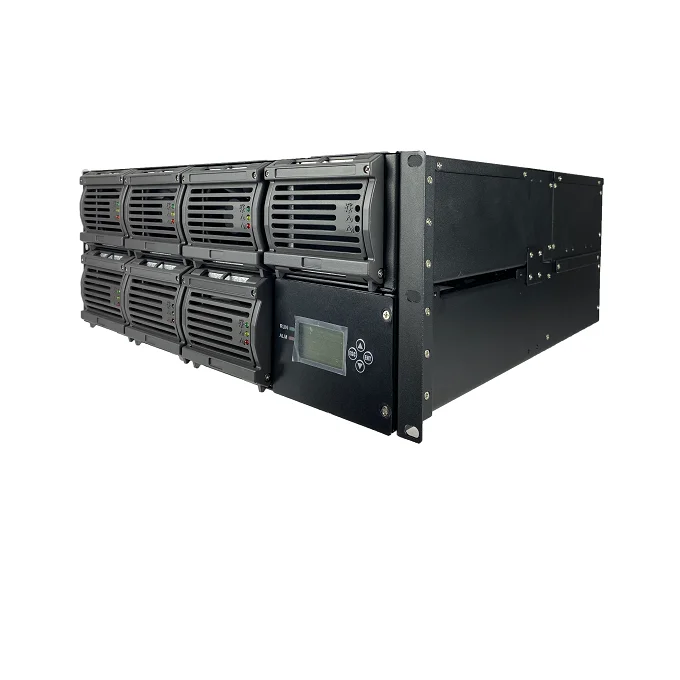

BWITT Rectifier System
RCT2000 Series Rectifier System (110Vdc)
110VDC voltage adjustable Rack rectifier system 110v dc power supply 0-400v
Products Features:
1.Widely operating range of AC input voltage: 90~290Vac
2.19’ inch rackmount shelf
3.Real-time detection of operating status, sound-light alarm
4.Perfect battery management, accessory battery temperature detector 5.20 amp output per module, 60 amp system capacity max for 2U （Whole system 180 amp max)
AC DC rectifier system is consisted by one rectifier module or multiple rectifier modules and monitor
modules. The power of rectifier systems can be different by different quantity rectifier modules.
This rectifier system converters high voltage AC to DC110V or DC220V use for special DC equipment
load. High efficiency>96%.
Remark:Some rectifier system need rectifier modules,monitor and distribution;some system only need
rectifier modules.ACDC rectifier system can supply DC power for DC load and charging for battery at
the same time.
Product Paramenters
Factory defaults conform to the VRLA profile or can be user definable based on the type of batteries used and specified during the installation process. Customized settings may also configure it on the monitor module display, Or via Backup Management software.
|
Model
|
BWT1102500-S
|
BWT1107500-S
|
BWT11012500-S
|
BWT11017500-S
|
||||
|
Phase
|
Single Phase
|
Single Phase/Three Phase
|
||||||
|
Module Quantities
|
1
|
3
|
5
|
7
|
||||
|
AC Input
|
||||||||
|
Efficiency
|
92.3%
|
|||||||
|
Power Capacity(Max)
|
2500W
|
7500W
|
12.5KW
|
17.5KW
|
||||
|
AC Input voltage
|
220Vac
|
|||||||
|
Input voltage range
|
90~290Vac(derate≤176Vac)
|
|||||||
|
Power factor
|
>0.99
|
|||||||
|
Frequency Range
|
45~66Hz
|
|||||||
|
THDi |
＜5%@ full load ＜10% @half load Rated input & OutputVoltage
|
|||||||
|
DC output
|
||||||||
|
Output Voltage
|
110Vdc
|
|||||||
|
Output Current
|
20A
|
60A
|
100A
|
140A
|
||||
|
Output Current Max
|
22A
|
66A
|
110A
|
154A
|
||||
|
Equ- Voltage
|
126.5V（99~143Vdc adjustable）
|
|||||||
|
Float Voltage
|
121V（99~143Vdc adjustable）
|
|||||||
|
Output Ripple Voltage
|
≤200mV(0~20mHz)
|
|||||||
|
Leakage Current
|
≤10mA
|
|||||||
|
Regulation
|
Line: 1%, Load: 2%
|
|||||||
|
Current Sharing
|
≤±5%
|
|||||||
|
Ripple voltage
|
≤200mV<0-20mHz>
|
|||||||
|
Load Breaker
|
3*Terminals(adjustable)
|
|||||||
|
Battery Breaker
|
1*battery terminal(adjustable)
|
|||||||
|
BLVD
|
Yes
|
|||||||
|
Shunt
|
Yes
|
|||||||
|
Monitor
|
||||||||
|
Model
|
6
|
|||||||
|
DO/DI
|
6
|
|||||||
|

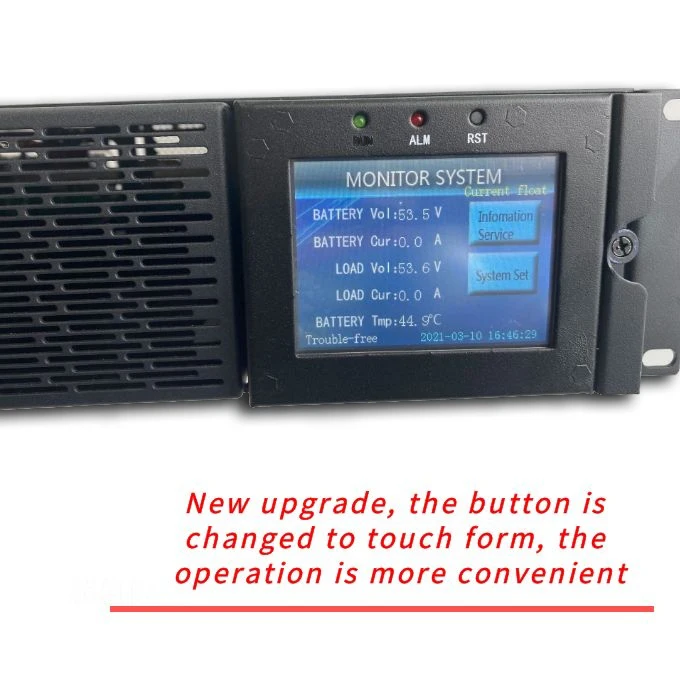

LCD display
|
voltage,bat status, total current, load current, active alarm
|
|||||||
|
Warning Remind
|
Sound and light
|
|||||||
|
Optional
|
Leakage detection
|
|||||||
|
Working Environment
|
||||||||
|
Dielectric strength
|
2000Vac/10mA/60s
|
|||||||
|
Humiditty
|
5%~95%, no moisture condensation
|
|||||||
|
Work temperature
|
-40℃~55℃
|
|||||||
|
Storage temperature
|
-40℃~70℃
|
|||||||
|
Noise(1m)
|
<55dB
|
|||||||
|
Size(mm)
|
482*320*88(2U)
|
482*320*176(4U)
|
||||||
|

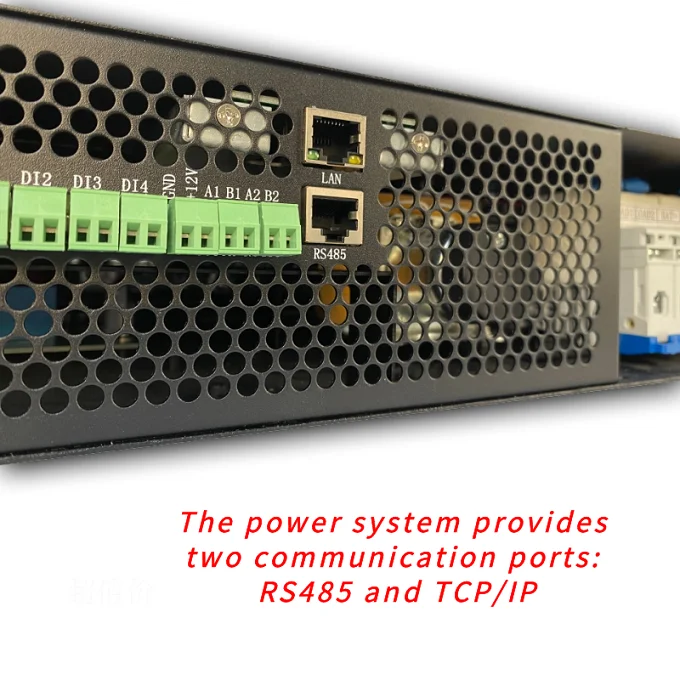

Communitcation
|
RS485/SNMP remote
|
|||||||

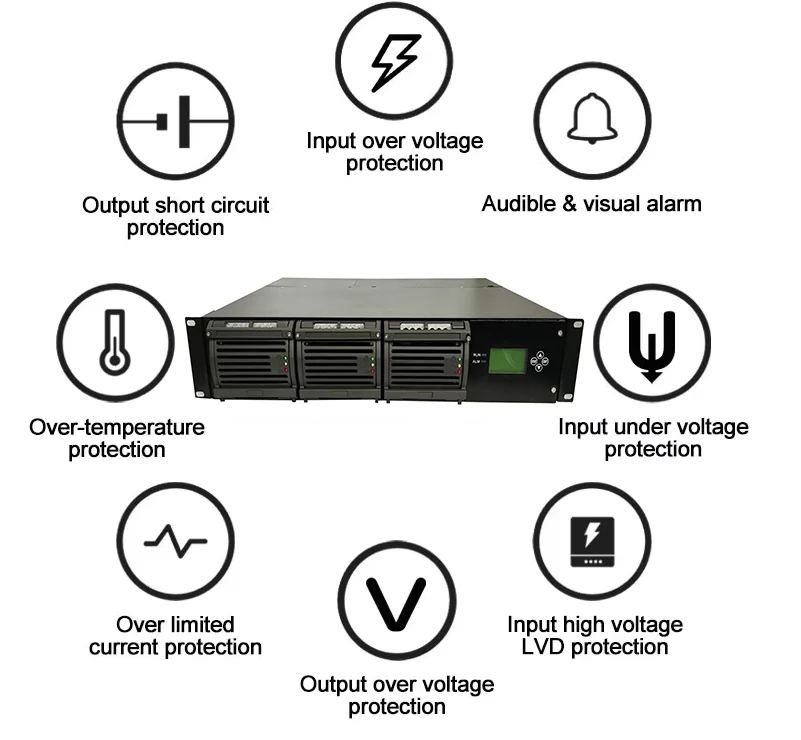

Main Features
Feature of product 1: 1. Circuit of the Rectifier modules have two parts,one is PFC adjust; the other is DC/DC transformation.All
technically m ake the wide input voltage range (85V-290V).
2. High efficiency 95%.rectifier modules used soft switch technology, while load rate10% then efficiency can be
91%,50% load rate the efficiency can be above 95%.
3. With step less current limiter technology, output current is continuously adjustable.
4. Adopted step less temperature control speed,it can reduce power consumption and prolong the life of the fan.

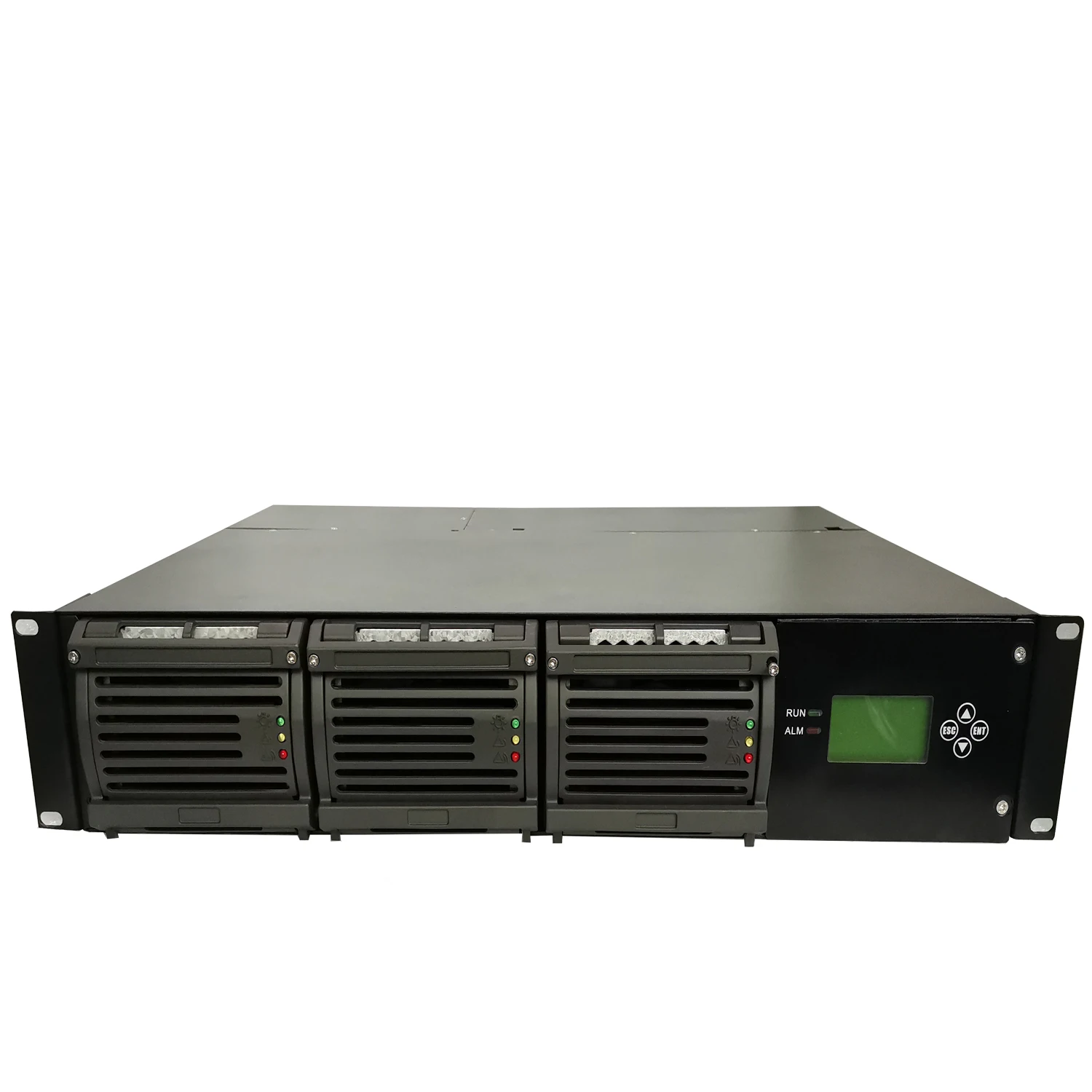

Product details:

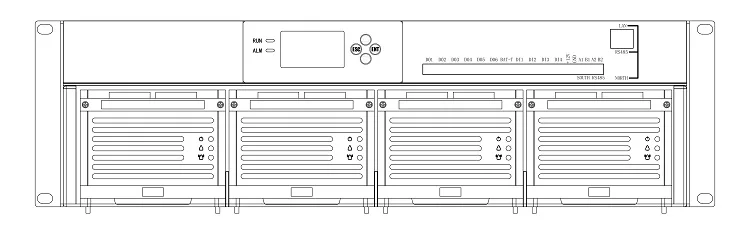

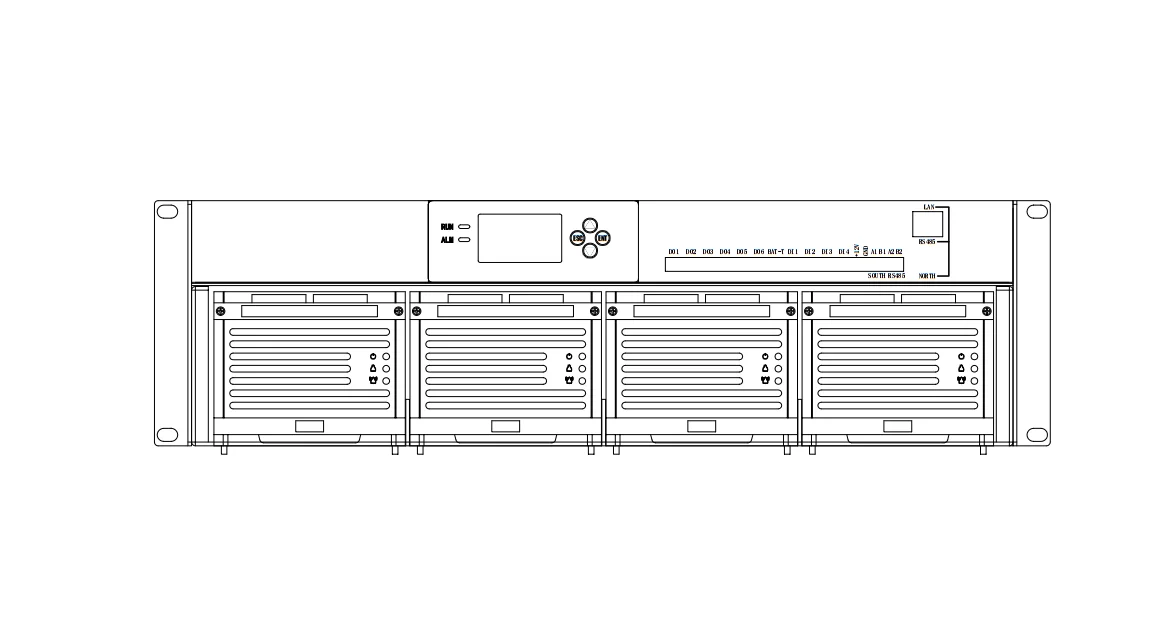

Hole size drawing：

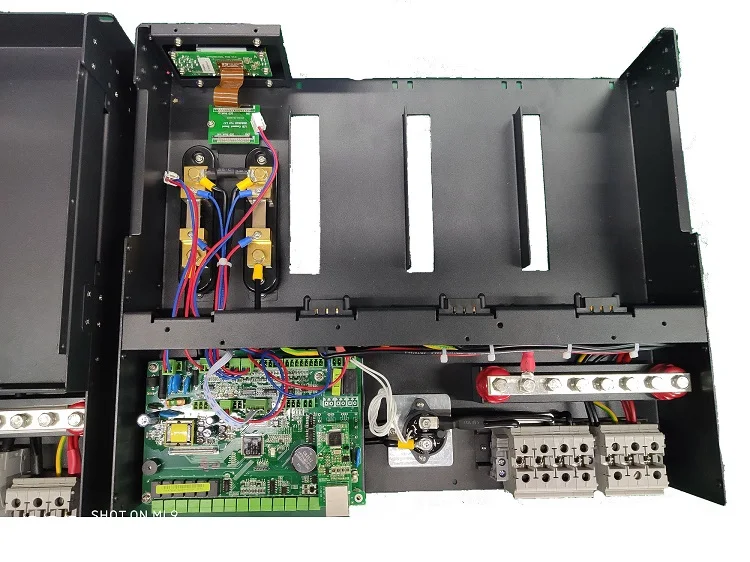

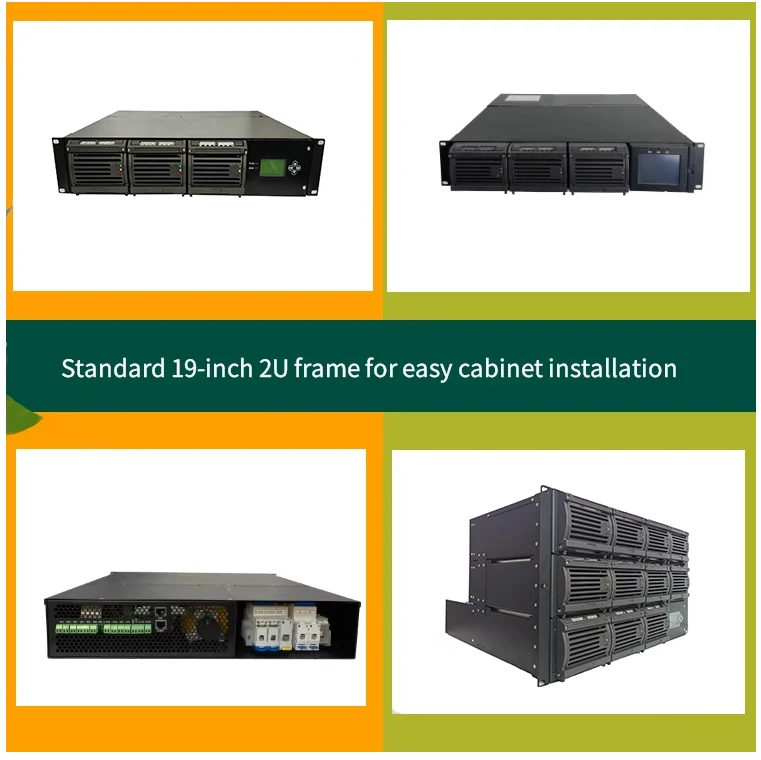

Detailed Images
