Leeson Motors

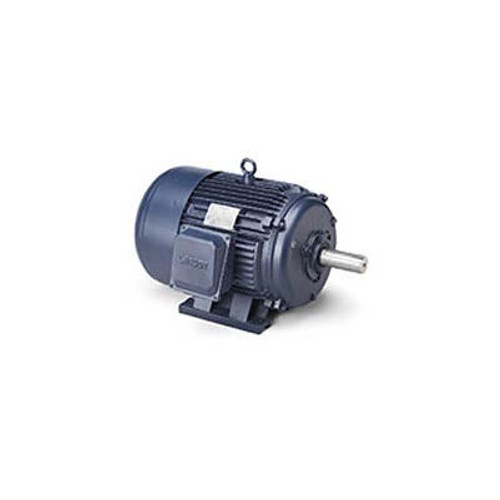

Leeson 170011.60, Premium Eff., 25 HP, 1770 RPM, 208-230/460V, 284T, TEFC, Rigid

(No reviews yet) Write a Review
SKU:
SGB222139
Condition:
New
Availability:
Usually Ships in 24 Hours
Shipping:
Calculated at Checkout
Warranty:
1 year replacement Warranty. Details
Returns:
30 Days Money Back Guarantee. Details
$2,924.10

SPW Industrial BBB Business Review

Description

General Purpose, 3-Phase Motor: 25/20HP, 1770/1480 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 284 Frame, Rigid Mount, 208-230/460V, 3PH, 60/50HZ, Name Plate Amps 66-59/29.5&60/30, Continuous duty, 1.25 Service Factor, No thermal protection, Efficiency: 93.6, Efficiency Type: NEMA Premium, Ambient 40 C, Reverse Rotation.Totally enclosed fan cooled (TEFC) enclosure has no vent openings, and is tightly enclosed to prevent the free exchange of air, but is not airtight. An external fan is an integral part of the motor and provides cooling by blowing air around the outside frame of the motor. Suitable for use where exposed to dirt or dampness, but NOT very moist or hazardous (explosive) locations.Rigid base allows motor to be rigidly mounted on equipment.Click here to see our full selection of Motor Controls and Drives.CompatibilityAO Smith/Magnetek: E549(Leeson motor is 208-230/460V ) | E550(Leeson motor has normally closed thermostats ) | S500(Install Chemical Service/Severe Duty (284/286T) kit 175052 ) Baldor: ECP4103T-4(Leeson motor is 208-230/460V, Leeson motor has standard paint, Install Chemical Service/Severe Duty (284/286T) kit 175052 ) | EFM4103T(Reassemble Leeson motor to F2 mounting ) | EM4103T | EM4103TGrainger/Dayton: 4FM47(IEEE 841 modification required - reference mod squad motor modifications L26 ) | 4N952 | 4N988 | 5N262 | 5N782 | 5N822Marathon: E207Reliance: P28G7402 Product Specifications HORSEPOWER25 ENCLOSURETEFC FRAME284T MOUNTINGRigid NAMEPLATE RPM1770 PHASE3 MOTOR RPM 60Hz1770 VOLTAGE208-230/460 HERTZ60/50 DUTYContinuous SERVICE FACTOR1.25 THERMAL PROTECTIONNo EFFICIENCY TYPENEMA Premium EFFICIENCY93.6 AMBIENT TEMP C40 ROTATIONCCW/CW WEIGHT395 ULY CSAY LEESON MODEL NO.C284T17FB5CC UPC69172002778 RPM RANGE1701-1800 COMPATIBLE WITH/REPLACES - 1Baldor ECP4103T-4, WEG 02518ET3E284T, Marathon E961C BEARING-DRIVE-END6311 COMPATIBLE WITH/REPLACES - 3Grainger/Dayton, 4FM47, 4N952, 4N988, 5N262, 5N782, 5N822 COMPATIBLE WITH/REPLACES - 2TechTop GR3-CI-TF-284T-4-BR-D-25 FL AMPS66-59/29.5 BRANDLeeson MANUFACTURER PART #170011.60 is_motorYes DESIGNSq Cage Inductor Run ENCLOSURE TYPETotally Enclosed FRAME MATERIALCast Iron
